技术 - Article 2023.11.10

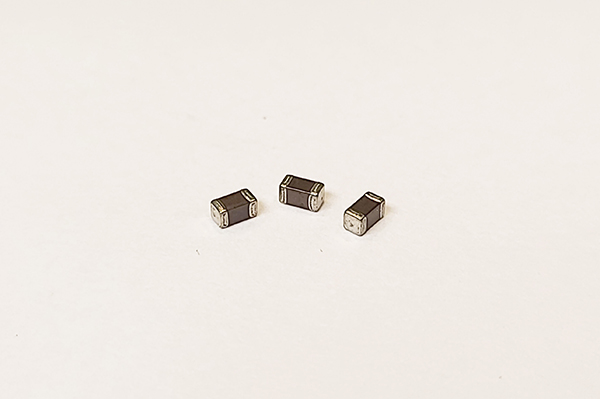

三星电机车载MLCC 1206 inch X7R 10㎌ 50V新品问世

在1206 inch (3.2×1.6mm)、 X7R (-55 to 125℃)、电压50V上实现容值10µF



▷ 开发出可用于汽车的Powertrain/ Safety领域的叠层陶瓷电容CL31B106KBK6PJ# 并已量产，可提供样品。



▷ 随着汽车的电动化和高性能化，每辆汽车使用的MLCC数量也在急剧增加，因此也持续要求MLCC小型化、稳定性及容值的增加。



▷对此，三星电机采用独有的陶瓷及微粒化电极材料和超精密的叠层工艺,在1206 inch (3.2×1.6mm) 、电压 50V上成功开发了 X7R 10㎌产品。




Samsung Size Capacitance Rated Voltage * TCC
CL31B106KBK6PJ#
 1206 inch 10㎌ 50V X7R

*TCC : Temperature Coefficient of Capacitance

*X7R :在 -55℃~125℃ 温度范围内的容量变化率 ±15%, X7S: ±22%, X7T: +22% / -33%

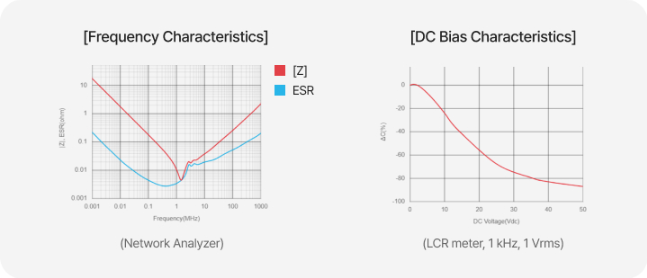

Characteristics data

 ▶ 产品详细内容请参考此处


▶ 产品相关咨询请点击此处。

▶ 三星电机车载产品Lineup请参考此处。
