无人驾驶汽车不仅是出行手段的变化，也在众多领域给我们的生活带来了变化。
无人驾驶汽车为不会开车或是开不好车的人们提供了便利的出行手段。
将在路上开车消耗的时间还给驾驶的人们，
并非私有，而是共有的共享经济得以扩散。

无人驾驶汽车即将带来的充满魅力的生活变化，其中心就在三星电机。

Automotive Core Technology with High Reliability

三星电机的高品质车载用 MLCC为车辆内电子控制系统的稳定动作提供支持。

三星电机通过提供高性能、高可靠性产品，在车载用被动元件领域发挥全球领先作用。

MLCC
MLCC
三星电机为安全、咨询娱乐等多种应用程序提供多样的车载用 MLCC。这种 MLCC具备出色的电特性，为其高可靠性提供保障。同时通过柔性外部电极(Soft Termination)技术，吸收外部物理压力，防止发生短路。
  • xEV
  • ADAS & Safety
  • Body & Chassis
  • Infotainment & Comfort

Samsung Electro-Mechanics’ MLCC Enabling Automotive

ADAS

IVI

Body · Chassis

EV

ADAS - SCC(Radar) ADAS - NVS(Infrared) ADAS - LiDAR IVI - Head Unit IVI - HUD IVI - TCU Body.Chassis - Lighting Body.Chassis - EPS Body.Chassis - BAU EV - OBC EV - BMS EV - Inverter

Product Search

  • Normal
    (All Location)

    • X7* Normal(Epoxy)
    • C0G Normal
    PN Series

  • ESD Strengthen
    (Connector I/F)

    • ESD Strengthen
    PE Series

  • High Temperature
    (Near Power Semiconductor)

    • X8* Normal
    PN Series

  • Crack Mitigation(12V Battery Line,
    Near Hole & Connector)

    • Soft Termination(*PJ Series)
    • Fail Safe/Soft Term.(XPJ Series)
    *PJ Series / XPJ Series

产品特点

  • 拥有可靠性提升的
    Soft Termination 技术
  • 防止短路的坚
    固设计
  • 具有很高有效容
    量的优越的电特性

Driving Assistance & Safety

面向人类的三星电机引领相机模块、无人驾驶的安全变化。

三星电机截至目前共提供10亿个相机模块，在相机技术领域处于国际领先地位。在汽车领域，过去10多年间与 OEM 及 Tier 1 客户合作，发展显著。在模块设计、封装、生产领域，凭借三星电机特有的优势，使客户能够确保足够强的竞争力。

Viewing Camera
Viewing Camera
三星电机的车载用相机支持VGA、HD、Full HD版本，按照所
有种类的汽车应用程序，设计适合的产品。该相机根据汽车
规格进行测试，按照顾客想要的样式，发挥最佳性能。
  • Surround View
  • Rear View
  • Park Assist
  • Mirror Replacement
Sensing Camera
三星电机遥感相机将准确的机器视觉最优化，提供延伸的感知性能。而且从
相机和 ECU 罩内部散热的功能十分突出。三星电机与多家图像传感器企业
合作，提供柔性形态选择。
  • Automatic Emergency Braking
  • Lane Departure Warning
  • Forward Collision Warning
  • Adaptive Cruise Control Traffic Sign Recognition
  • Blind Spot Detection
Sensing Camera
Interior Camera
Interior Camera
三星电机的内部装饰摄像机提供卓越的光学性能，使用甚至肉眼很难注意到
的微型形态，能够应用于多类汽车应用程序。
同时凭借惊艳的内部光学设计力量，考虑到不同国家驾驶座相异的位置及驾
驶人员体格等环境因素，提供满足多种应用程序的相机。
  • Driver Monitoring
  • Passenger Identification
  • Video Conferencing

产品特点

  • 拥有自主镜头技术
    最优化针对型设计
  • 优秀的夜间性能
  • 微型形态
  • 高可靠性
    温度、震动、水分
  • 高分辨率
    延伸的感知性能
  • 低弯曲镜头设计

产品

Online Museum TOP
订阅新闻速递，查看三星电机的最新新闻吧

为您提供世界最好的综合零件公司三星电机最新消息

  • 电子报申请个人信息手机、同意使用 (含同意接受广告性信息) 查看内容

    1. Purpose of Collecting Personal Information

    Samsung Electro-Mechanics Co., Ltd. (hereinafter referred to as "SEM") collect your email information to deliver reports or news published by SEM, and the collected personal information will not be used for any purpose other than the specified purpose, and in the event of any change in the purpose of the collection, you will be notified in advance for your consent.

    2. Terms of Retention and Usage of Personal Information

    When you apply to unsubscribe from the newsletter, your personal data will be destroyed without delay. If the retention of the information is required by other laws, personal information for which the term of retention and use has expired may be retained without being destroyed.

    3. Personal Information We Collect
    • Item(s) : Email
    • Period of Retention : Until request of unsubscribe to newsletters
    • Purpose of Collection : To provide reports and news from Samsung Electro-Mechanics
    • Information Automatically Collected : IP(Internet Protocol), Cookies, Access log
    4. Matters Concerning the Consignment of Personal Information Processing

    The “sending of newsletters” is entrusted to and operated by an external professional company as shown below to perform the service. In accordance with related laws, such as the Personal Information Protection Act, the Company specifies in its agreement with the external service provider matters concerning the liabilities, such as the prohibition to use personal information for purposes other than those to perform the consigned service, technical and administrative protective measures, restrictions on re-consignment, management and supervision of the trustee, damages, etc., pursuant to related laws such as the Personal Information Protection Act, and SEM will notify you without delay in the event of any change in the details of the consignment or any change of the consignee.

    Matters Concerning the Consignment of Personal Information Processing
    Name of the Consignee Company The Uber Creative
    Representative Telephone Number +82-2-517-5133
    Consigned Work Sending out newsletters, operation and maintenance of the website

    ※ You have the right to refuse to consent to the collection and use of your personal data, and if you do not agree, you will not be able to receive the newsletter.

    I have read the above contents and agree to the collection and use of my personal information including consent to receive advertising information.

  • 同意接收三星电机速递。

订阅新闻简讯

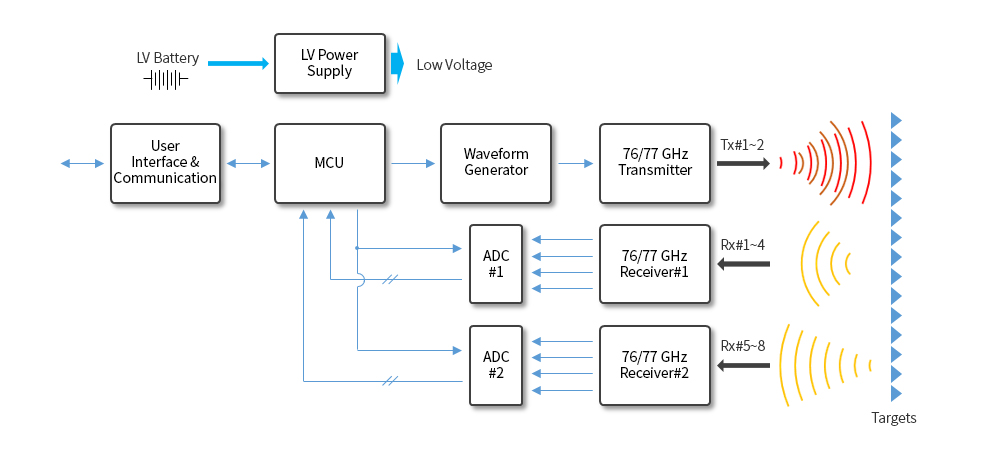

ADAS

SCC (Radar) Smart Cruise Control

ADAS,SCC(Radar), Smart Cruise Control.

LV Battery → LV Power Supply → Low Voltage
↔ User Interface & Communication ↔ MCU → Waveform Generator → 76/77 GHz Transmitter → Tx#1~2 → Wave → Targets
↔ User Interface & Communication ↔ MCU ↔ ADC#1 ← 76/77 GHz Receiver#1 ← Rx#1~4 ← Wave → Targets
↔ User Interface & Communication ↔ MCU ↔ ADC#2 ← 76/77 GHz Receiver#2 ← Rx#5~8 ← Wave → Targets

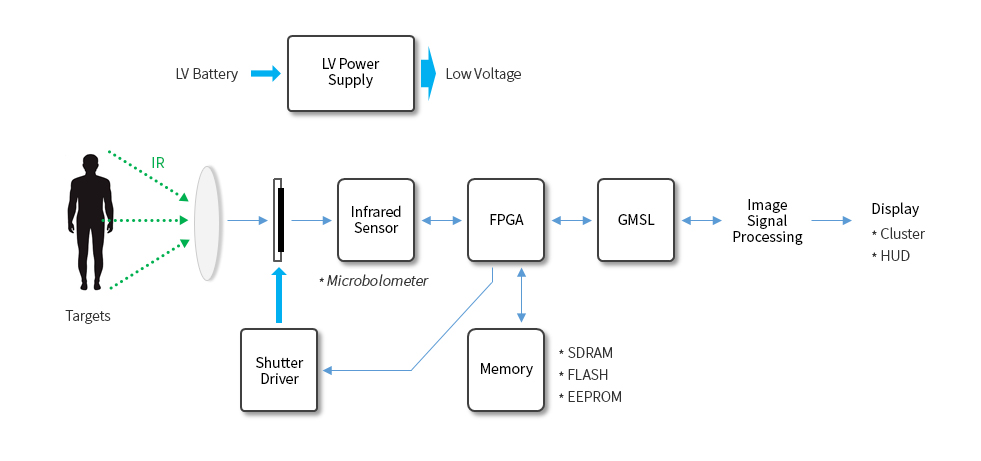

ADAS

NVS (Infrared) Night Vision System

ADAS, NVS (Infrared), Night Vision System

LV Battery → LV Power Supply → Low Voltage
Targets → IR → Lens → Infrared Sensor(*Microbolometer) ↔ FPGA ↔ GMSL ↔ Image Signal Processing → Display(*Cluster,*HUD)
Shutter Driver ← FPGA ↔ Memory(*SDRAM, *FLASH, *EEPROM)

ADAS

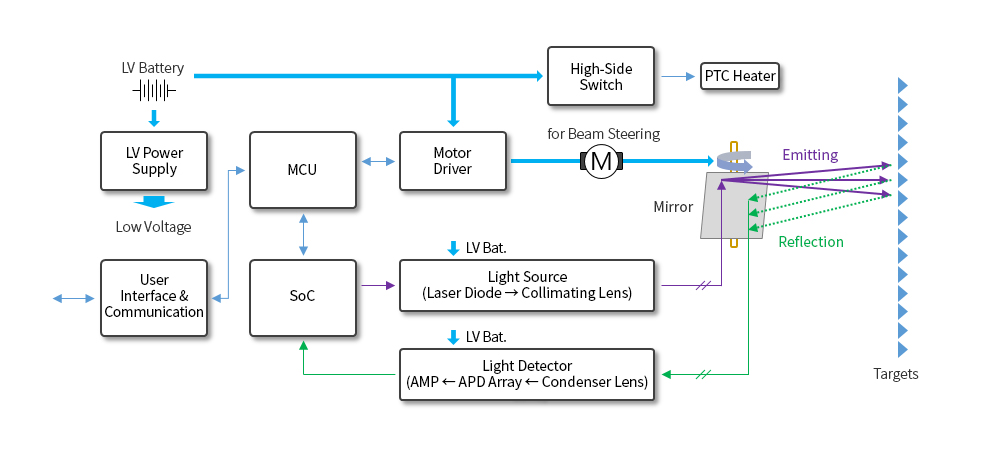

LiDAR Light Detection And Ranging

ADAS, LiDAR, Light Detection And Ranging

LV Battery → High-Side Switch → PTC Heater
LV Battery → LV Power → Supply → Low Voltage
↔ User Interface & Communication ↔ MCU ↔ Motor → for Beam Steering → Mirror → Targets
↔ User Interface & Communication ↔ MCU ↔ SoC → Light Source(Laser Diode → Collimating Lens), LV Bat. //→ Mirror → Emitting → Targets
↔ User Interface & Communication ↔ MCU ↔ SoC ← Light Detector(AMP ← APD Array ← Condenser Lens), LV Bat. ←// Mirror ← Reflection ← Targets

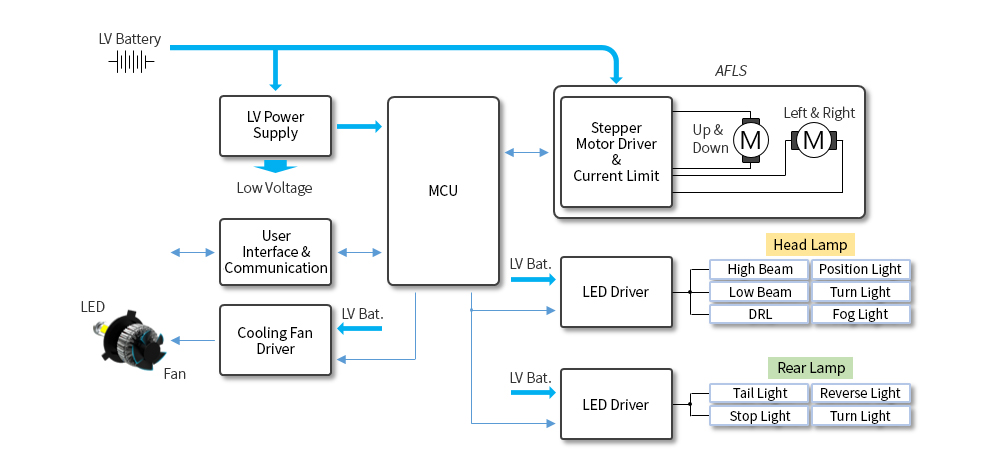

Body·Chassis

Lighting LED Lighting with AFLS

Body·Chassis, LED Lighting with AFLS

LV Battery → AFLS(Stepper Motor Driver & Current Limit, Up & Down, Left & Right)
LV Battery → LV Power Supply → Low Voltage
LV Battery → LV Power Supply → MCU ↔ AFLS(Stepper Motor Driver & Current Limit, Up & Down, Left & Right)
↔ User Interface & Communication ↔ MCU → Cooling Fan Driver, LV Bat. → LED, Fan
↔ User Interface & Communication ↔ MCU → Led Driver, LV Bat. → Head Lamp(High Beam, Position Light, Low Beam, Turn Light, DRL, Fog Light)
↔ User Interface & Communication ↔ MCU → Led Driver, LV Bat. → Rear Lamp(Tail Light, Reverse Light, Stop Light, Turn Light)

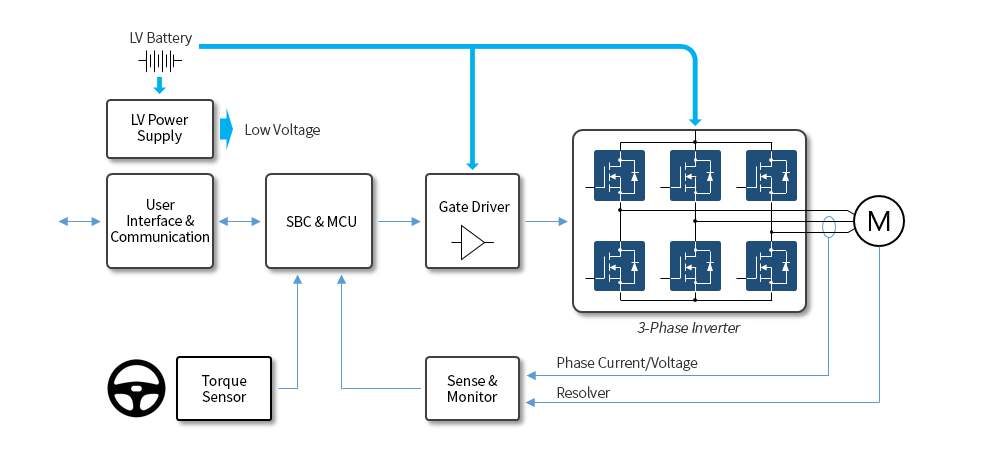

Body·Chassis

EPS Electric Power Steering

Body·Chassis, EPS Electric Power Steering

LV Battery → LV Power Supply → Low Voltage
LV Battery → 3-Phase Inverter (M)
LV Battery → Gate Driver → 3-Phase Inverter (M)
↔ User Interface & Communication ↔ SBC & MCU → Gate Driver → 3-Phase Inverter (M) → Phase Current/Voltage, Resolver → Sense& Monitor → SBC & MCU

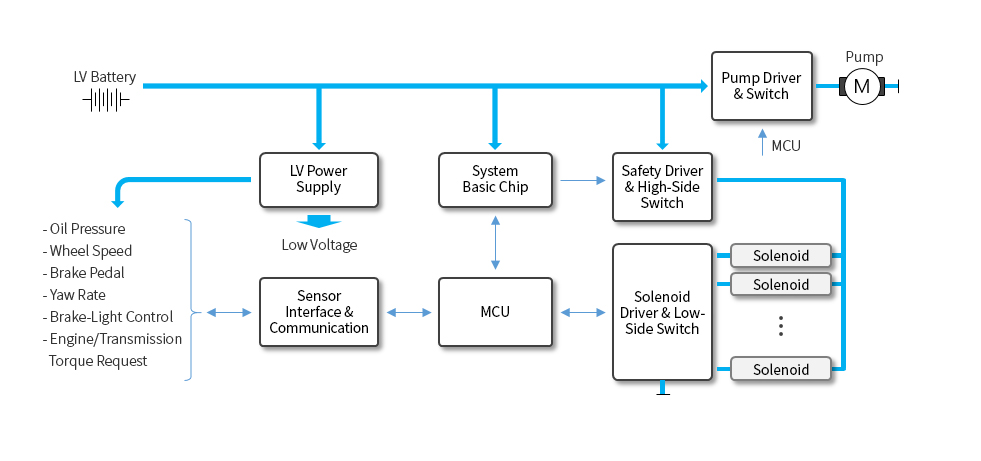

Body·Chassis

BAU Brake Actuation Unit

Body·Chassis, BAU, Brake Actuation Unit

LV Battery → Pump Driver & Switch , MCU - Pump(m)
LV Battery → LV Power Supply → Low Voltage
LV Battery → LV Power Supply → Oli Pressure, Wheel Speed, Brake Pedal, Yaw Rate, Brake-Light Control, Engine/Transmission Torque Request ↔ Sensor Interface & Communication ↔ MCU
LV Battery → System Basic Chip ↔ MCU
LV Battery → System Basic Chip → Safety Driver & High-Side Switch → Solenoid, Solenoid, Solenoid → Solenoid Driver & Low-Side Switch ↔ MCU

IVI

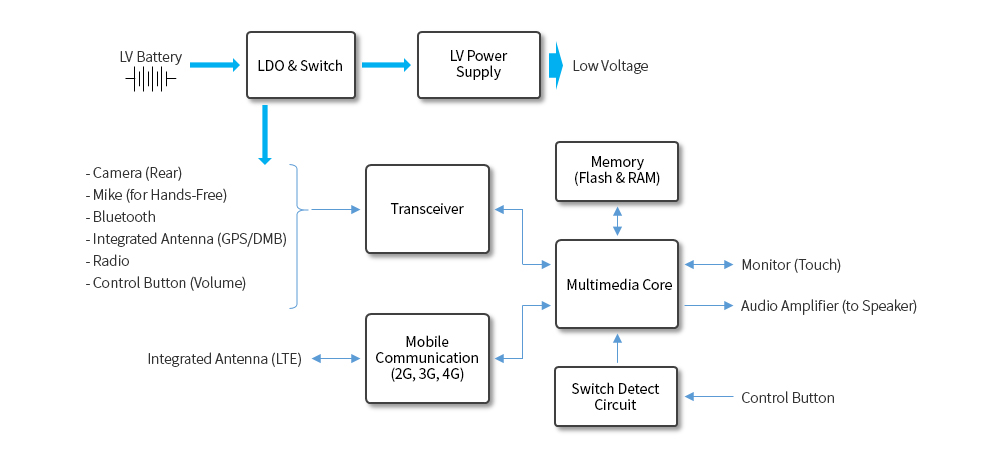

Head Unit for Audio-Video-Navigation

IVI, Head Unit, for Audio-Video-Navigation

LV Battery → LDO & Switch → LV Power Supply → Low Voltage
LV Battery → LDO & Switch → Camera (Rear), Mike (for Hands-Free), Bluetooth, Integrated Antenna (GPS/DMB), Radio, Control Button (Volume) → Transceiver ↔ Multimedia Core ↔ Memory (Flash & RAM)
Multimedia Core ↔ Monitor (Touch)
Multimedia Core → Audio Amplifier (to Speaker)
Integrated Antenna (LTE) ↔ Mobile Communication (2G, 3G, 4G) ↔ Multimedia Core ← Switch Detect Circuit ← Control Button

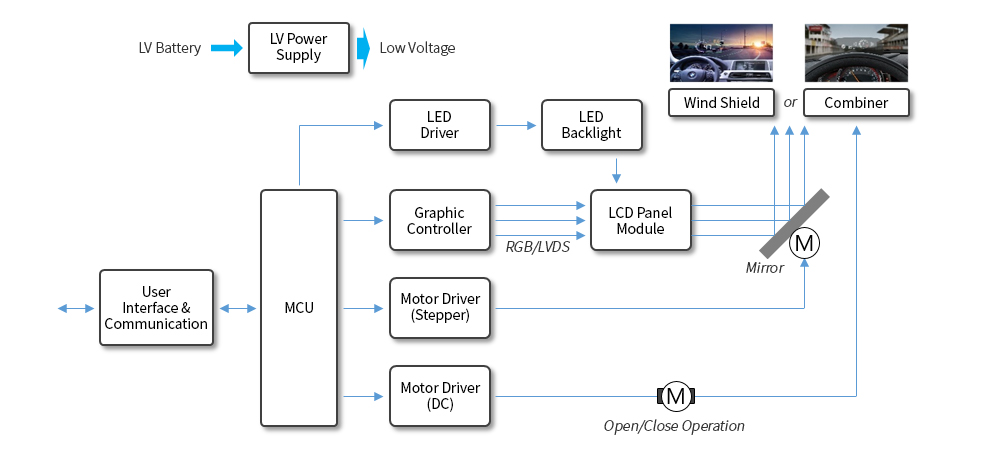

IVI

HUD Head Up Display

IVI, HUD, Head Up Display

LV Battery → LV Power Supply → Low Voltage
↔ User Interface & Communication ↔ MCU
MCU → LED Driver → LED Backlight → LCD Panel Module → Mirror → Wind Shield or Combiner
MCU → Graphic Controller → RGB/LVDS → LCD Panel Module → Mirror → Wind Shield or Combiner
MCU → Motor Driver (Stepper) → M
MCU → Motor Driver (DC) → Open/Close Operation → Combiner

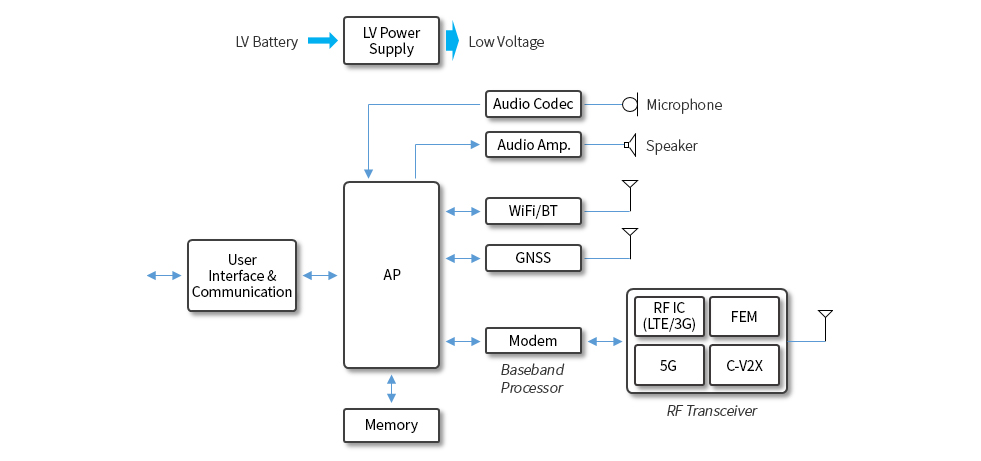

IVI

TCU Telematics Control Unit

IVI, TCU, Telematics Control Unit

LV Battery → LV Power Supply → Low Voltage
↔ User Interface & Communication ↔ AP ← Audio codec - Microphone
AP → Audio Amp. - Speaker
AP ↔ WiFi/BT
AP ↔ GNSS
AP ↔ Modem(Baseband Processor) ↔ RF Transceiver [RF IC(LTE/3G), FEM, 5G, C-V2X]
AP ↔ Memory

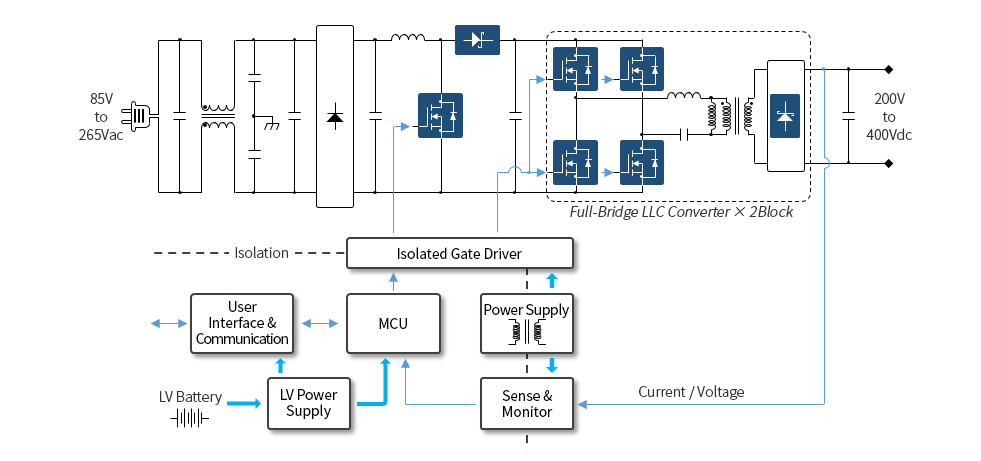

EV

OBC On Board Charger

EV, OBC, On Board Charger

85V to 256Vac - Full Bridge LLC Converter x 2Block circuit diagram - 200V to 400Vdc
----- Isolation -------Isolated Gate Driver → Full Bridge LLC Converter x 2Block circuit diagram
↔ User Interface & Communication ↔ MCU → Isolated Gate Driver
LV Battery → LV Power Supply → MCU
MCU ← Sense & Monitor ← Current / Voltage ← 200V to 400Vdc
Sense & Monitor ← Power Supply → Isolated Gate Driver → Full Bridge LLC Converter x 2Block circuit diagram

EV

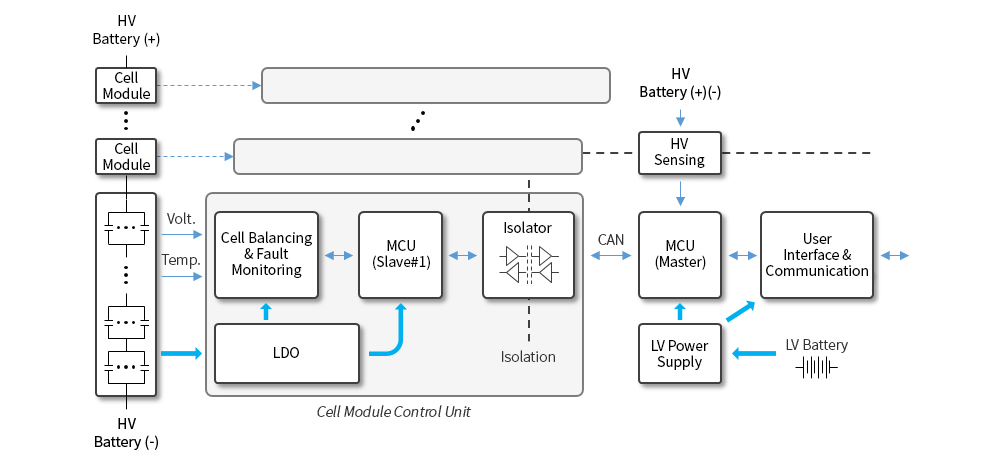

BMS Battery Management System

EV, BMS Battery Management System

HV Battery (+) - Cell Module ···Cell Module - HV Battery (-)
Volt. → Cell Module Control Unit [ Cell Balancing & Fault monitoring ↔ MCU(Slave#1) ↔ Isolator ---- Isolation] ↔ CAN ↔ MCU (Master) ↔ User Interface & Communication ↔ Temp. → Cell Module Control Unit [ Cell Balancing & Fault monitoring ↔ MCU(Slave#1) ↔ Isolator ---- Isolation] ↔ CAN ↔ MCU (Master) ↔ User Interface & Communication ↔ HV Battery (+)(-) → HV Sensing → MCU (Master) ← LV Power Supply → User Interface & Communication ↔ LV Battery → LV Power Supply

EV

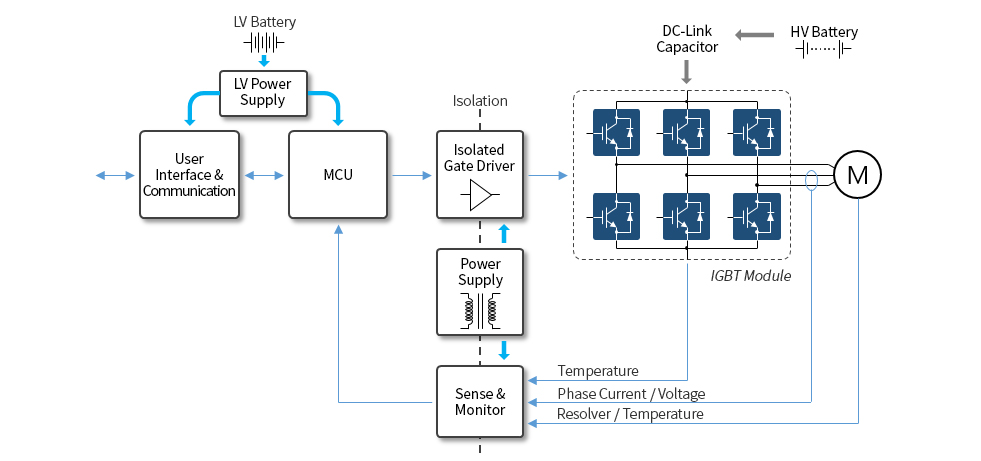

Inverter Main Motor Driver

EV, Inverter, Main Motor Driver

LV Battery → LV Power Supply → User Interface & Communication
LV Battery → LV Power Supply → MCU
↔ User Interface & Communication ↔ MCU → Isolated Gate Driver → IGBT Module - M
↔ User Interface & Communication ↔ MCU ← Sense & Monitor
IGBT Module → Temperature → Sense & Monitor
Between IGBT Module and M → Phase Current / Voltage → Sense & Monitor
M → Resolver / Temperature → Sense & Monitor
Isolation --- Isolated Gate Driver --- Power Supply --- Sense & Monitor ---
DC-Link Capacitor ← HV Battery
