B2Bi (EDI)

三星电机使用国际标准电子文件，
实现两家公司系统间的业务数据及文件实时共享。

主页顾客支援B2Bi (EDI)

三星电机使用国际标准电子文件(EDI)，运行两家公司间业务数据和文件实时共享的体系。
EDI使用的信息按照两家公司提前规定的样式和方法进行协商、应用，为此三星电机的应用标准如下。

文件种类，基础设施简介

三星电机与贸易伙伴存在如下业务时，主要通过EDI进行。

文件种类，基础设施简介 Document, Planning Release Forecast, Purchase Order etc.
Document EDIFACT X.12 RosettaNet
Planning Release Forecast DELFOR 830 4A4
Purchase Order ORDERS 850 3A4
Purchase Order Confirm ORDRSP 855 3A7
Advanced Shipment Notice DESADV 856 3B2
Invoice INVOIC 810 3C3
Inventory Report INVRPT 846 4C1
Sales Report SLSRPT 867 4E1

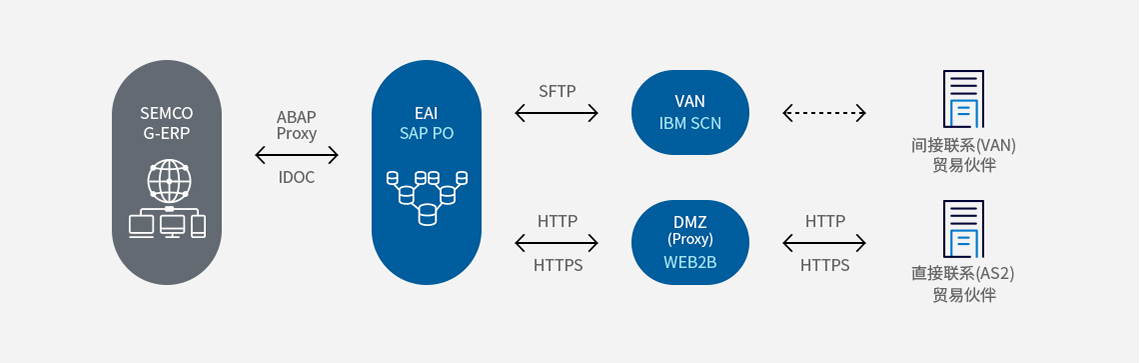

传输方法氛围使用 VAN 服务的间接联系方式和使用RosettaNet的间接联系方式。

  • SEMCO G-ERP <- ABAP Proxy, IDOS -> EAI SAP PO
  • EAI SAP PO <- SFTP -> VAN IBM SCN
  • EAI SAP PO <- HTTP, HTTPS -> DMZ(Proxy) WEB2B
  • VAN IBM SCN <---> 间接联系(VAN)贸易伙伴
  • DMZ(Proxy) WEB2B <---> 直接联系(AS2,Rosetta)贸易伙伴

应用程序

  • EDI 开设
    事前开会
  • EDI
    开发协商
  • 文件开发
  • 贸易伙伴
    联系 Test
  • 数据验证
  • 应用协议
  • 应用

Certificate (Public key)

直接联系 (AS2, RosettaNet) 需要仅限于贸易伙伴

  • SEMCO(SHA256)
  • 有效期 :2022.04.05~2023.05.07
  • 下载

Contact Point

  • Lee Jungsuk
  • E-mail: jungsukjungsuk.lee@samsung.com Tel: +82-31-300-7578
