技术 - Article 2025.02.05

随着DDR5的采用，用于Memory电压调节器的MLCC 25V Solution

▷ 随着Memory技术的发展，从DDR4切换到DDR5，主要功率设计方式也发生了变化。为了比之前的Memory提供更高的带宽和电力效率，DDR5发生了结构性改变，将电压调节器(Voltage Regulator, VR)的位置移动到了主板内部。

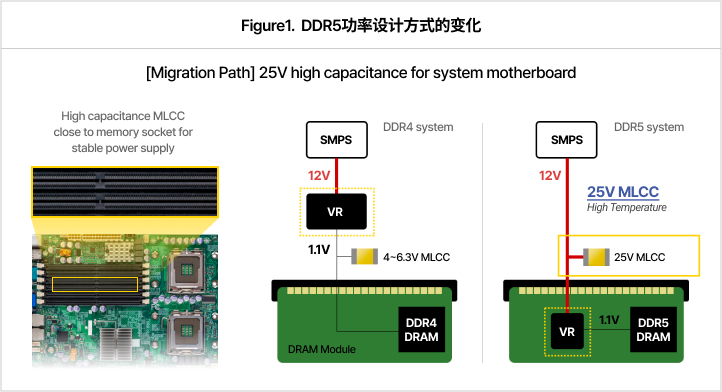

▷ 在DDR4系统中，收到开关模式电源 (Switching Mode Power Supply, SMPS) 12V供电后，在电压调节器内减压至1.1V后为Memory模组提供电源。所以，要求的MLCC额定电压主要是4~6.3V左右。但在DDR5中，从开关模式电源输出的12V直接向主板的电压调节器供电，因此电压调节器输入端12V上使用的MLCC额定电压要求提高到25V。这种电压变化不仅仅是功率设计也是MLCC规格变化的主要原因。 [Figure1]

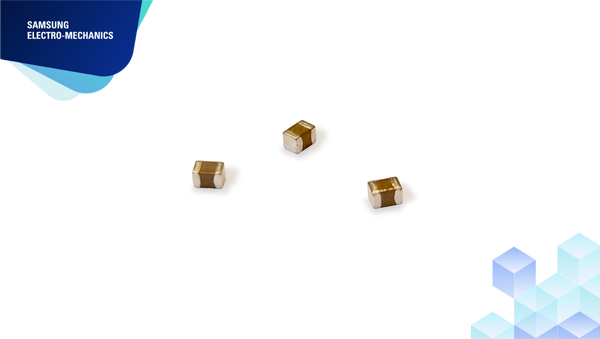

▷ 三星电机根据市场变化的需求，在世界上首次开发出0805 inch, X6S, 22uF, 25V MLCC，此产品满足最新Memory系统要求的所有规格，同时保证高可靠性。




Samsung

Size (inch)

Capacitance

Rated Voltage

TCC

CL21X226MAYNNW#

0805

22uF

25V

X6S

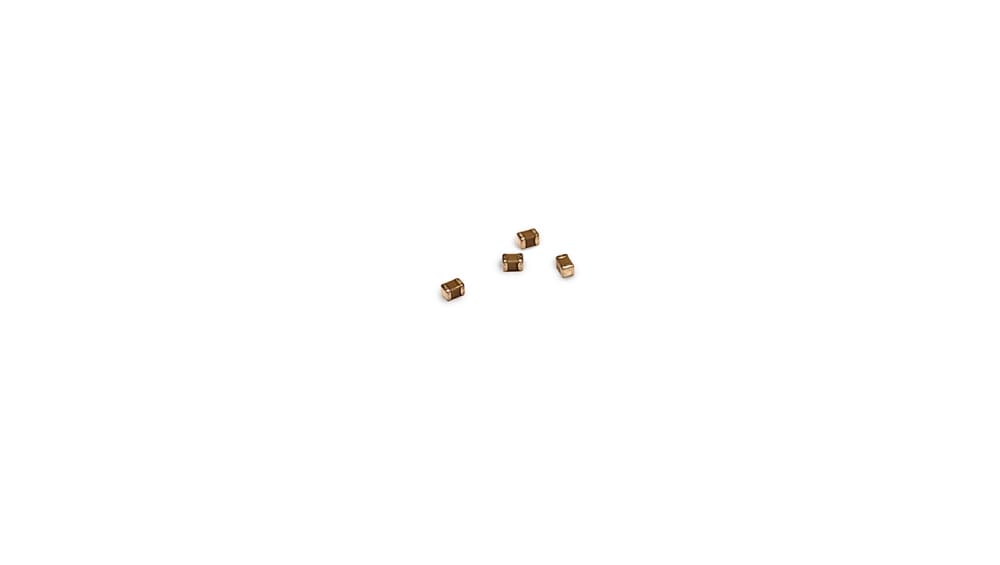

SAMSUNG 25V MLCC Line-up

Samsung

Size (inch)

Related

Voltage

[Vdc]

TCC

Capacitance

MP

Status

Sample

CL21X226MAYNNW#

0805

25

X6S

22uF

MP

Available

CL31X226KAK6NW#

1206

25

X6S22uF

MP

Available
