技术 - Article 2025.02.19

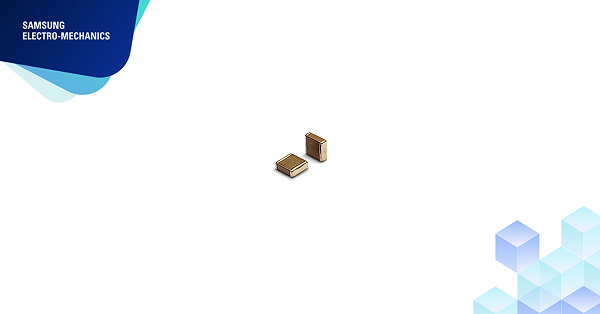

三星电机车规MLCC 2220 inch X7R 1㎌ 250V新品问世

▷ 开发出2220inch(5.7×5.0mm)，X7R(-55 to 125℃)，额定电压250V，容值1㎌的高端产品CL55B105KEU6PN#，已量产。



▷ 该产品同时具备技术优越性和稳定性，计划通过提供样品来应对不同客户的需求。



▷ 为了Body Controller, EPS(Electric Power Steering), OBC(On-Board Charger) 等的高功率、高电压及在极端环境下的性能稳定，对MLCC高可靠性的需求也在增加。



▷ 三星电机采用独有的陶瓷，微粒化电极材料和超精密叠层工艺，扩大了高电压、高容值产品覆盖范围，为了满足车规零部件的高可靠性趋势，计划持续扩大高可靠性产品的开发。




Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL55B105KEU6PN#

2220/5750

1㎌

250Vdc

X7R

(X7R : -55℃~125℃ 温度范围内的容值变化率 : ±15%)

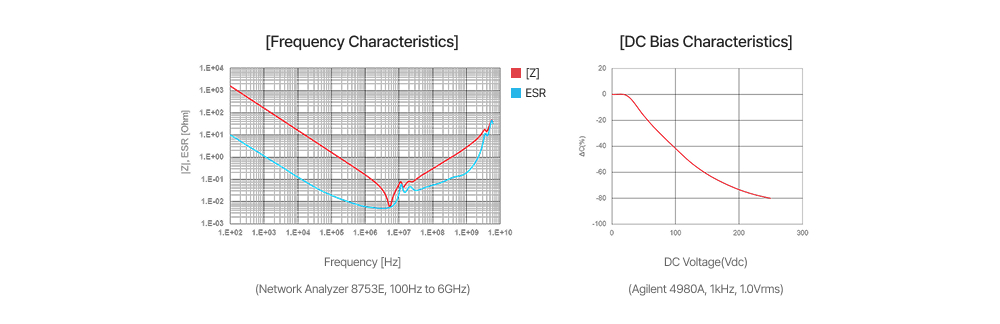

Characteristics Data
