技术 - Article 2025.03.19

Application Guide > Automotive > AVN(Audio Video Navigation)

汽车AVN(Audio Video Navigation)通过HUD(Head-Up Display)、曲面屏等显示技术的发展及加强通信连接，提高驾驶员的可视性，提供沉浸式的娱乐体验。

此外，随着自动驾驶的普及，AVN系统集成、语音控制、人工智能等多种先进技术的采用也呈增加趋势。



为了AVN采用的高性能IC的电源稳定，三星电机提供高可靠性小型高容量MLCC Line-up，并持续扩大供应。

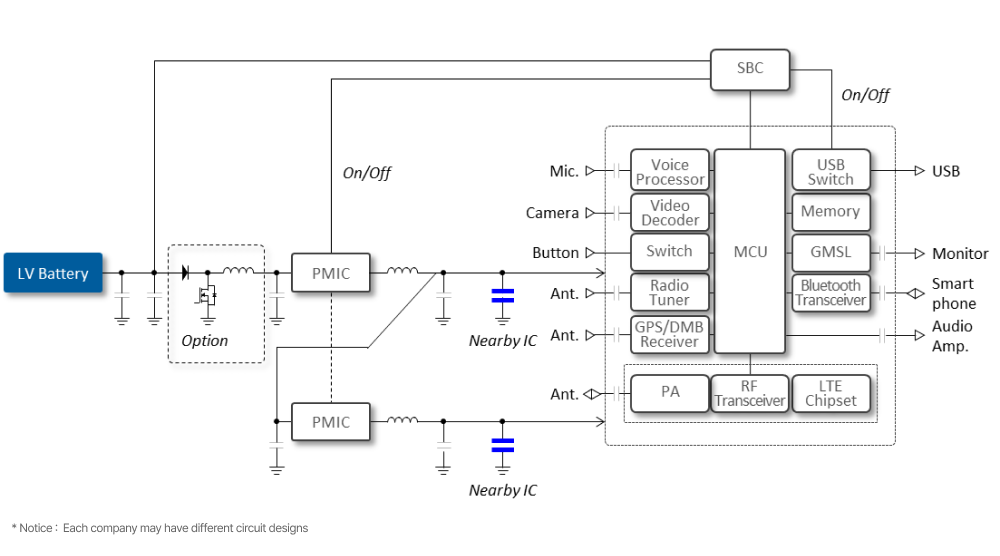

전장용 AVN(Audio Video Navigation) 관련 회로도 이미지

MLCC 趋势 : 小型化, 电压稳定

▷ 高可靠性

▷ 高容量

 → 推荐方案 :  X6S PN系列


Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0603/160810Vdc

X6S

22㎌

CL10X226MP91IN#

NEW

Available

0603/1608

6.3Vdc

X6S

22㎌

CL10X226MQ91IN#

In MP

Available

0402/1005

6.3Vdc

X6S

4.7㎌

CL05X475MQQ1IN#

In MP

Available

0201/0603

10Vdc

X6S

1㎌

CL03X105MPR1IN#

In MP

Available

0201/0603

6.3Vdc

X6S

1㎌

CL03X105MQR1IN#

In MP

Available

*The products are AEC-Q200 certified automotive-grade MLCCs designed specifically for IVI(In-Vehicle Infotainment) applications.
