技术 - Article 2023.12.14

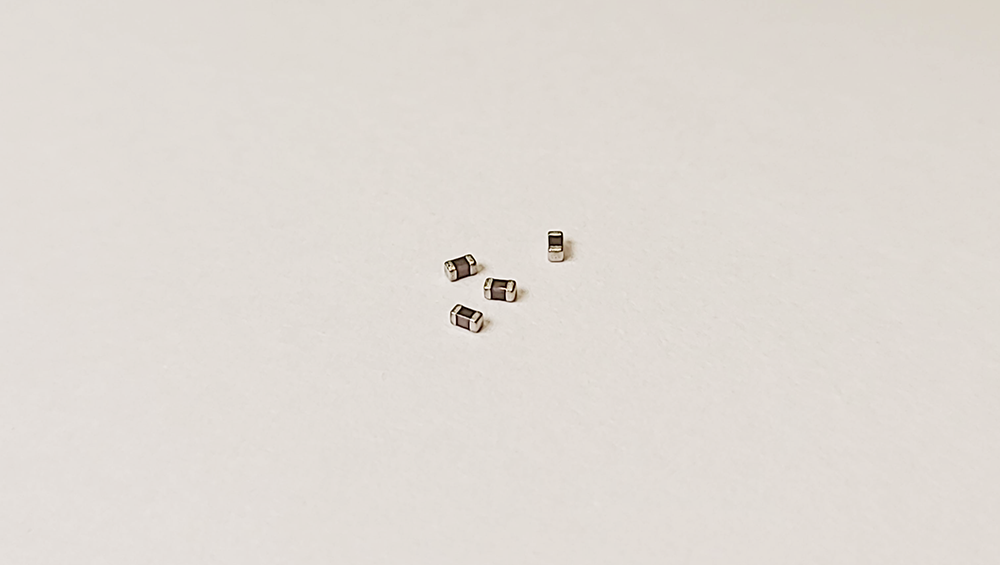

三星电机温度补偿用车载MLCC 150℃ 0402 inch 1nF 100V新品问世

世界最初在高温(150℃)、0402 inch (1.0×0.5mm)、电压100V上实现容值1㎋



▷ 开发出可应用于汽车Powertrain/ Safety领域的温度补偿用(Temp. Compensation) 叠层陶瓷电容 CL05G102JC51PN# (以下称为, 「本产品」) 并已量产，可提供样品。



▷ 本产品在对应的容值，电压上将尺寸从之前的0603 inch (1.6×0.8mm) 小型化到0402 inch (1.0×0.5mm) 。



▷ 随着汽车的电动化和高性能化，每辆汽车使用的MLCC数量也在急剧增加，应用在燃油车的发动机和电动车的电机等动力总成的核心驱动装置上的MLCC需要高温可靠性来保证在极端环境中的作用。



▷ 对此，三星电机采用独有的陶瓷及微粒化电极材料和超精密的叠层工艺，在0402 inch (1.0×0.5mm)、电压100V上将产品Coverage扩大到X8G级 1nF。




Samsung Size Capacitance Rated Voltage TCC
CL05G102JC51PN#
 0402 inch 1nF(1000pF) 100V X8G

X8G (Capacitance Change rate in -55 ~ +150℃) : 0±30ppm/℃

C0G (Capacitance Change rate in -55 ~ +125℃) : 0±30ppm/℃



Lineup for High Temperature Automotive MLCC (150℃)

Size, Rated Voltage

Capacitance

Remark

0402 inch (1.0×0.5mm), 100V

270pF

330pF

470pF

680pF

1,000pF

New

0603 inch (1.6×0.8mm), 100V

270pF

330pF

470pF

680pF

1,000pF





Characteristics data

 ▶ 产品详细内容请参考此处


▶ 产品相关咨询请点击此处。

▶ 三星电机车载产品Lineup请参考此处。
