技术 - Article 2024.03.20

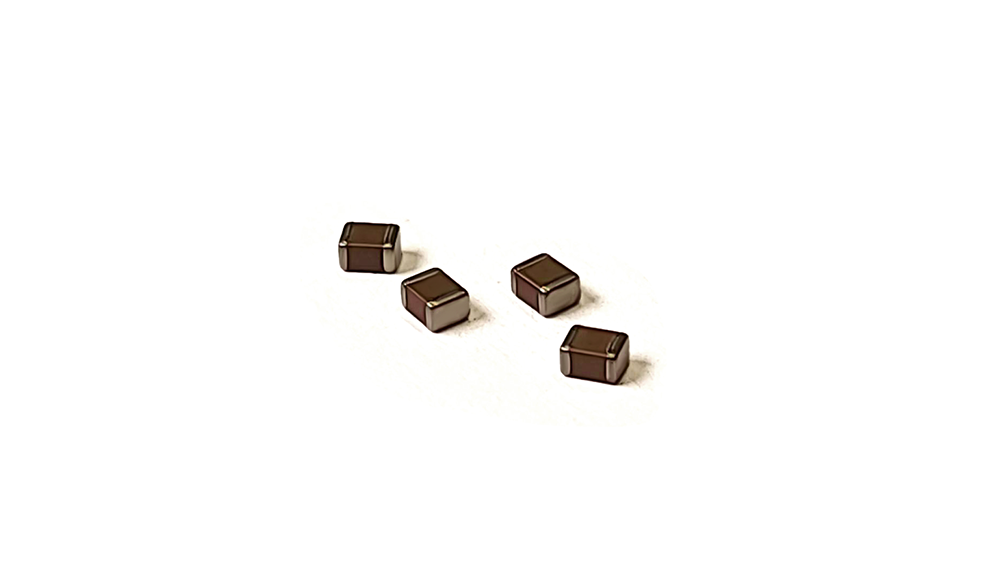

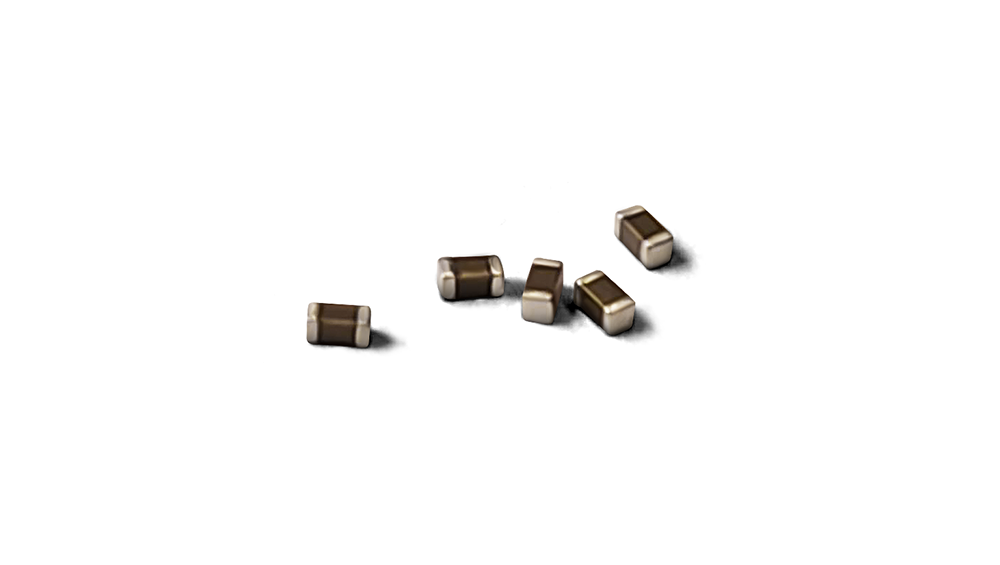

三星电机车载小型金属功率电感新品问世

▷ 推出1210 inch (3.2×2.5mm)以下尺寸的车载小型功率电感，共38个item，可提供样品。



▷ 随着汽车的电动化、高性能化所搭载的ECU和DC-DC Converter数量增加，在有限的空间内，需要电气特性优越的小型功率电感。



▷ 三星电机采用最佳薄膜型线圈结构和独有的磁性材料，实现了比市场产品更低的DC Resistance、更高的额定电流和高效特性。



▷ 通过差异化的Powder绝缘涂层和结合力增强的外部电极，满足大范围的动作温度(-55℃~150℃)、40V电压及AEC-Q200可靠性。



▷ 适用于包括ADAS (Advanced Driver Assistance System)、IVI (In-Vehicle Infotainment)在内的各种汽车application。





Lineup for small metal Power Inductor

Lineup for small metal Power Inductor Table - Size(inch/mm), Thickness(mm), Inductance (uH)에 대한 내용을 제공합니다.
Size
(inch/mm)		 Thickness
(mm)		 Inductance(uH)
0.1 0.15 0.22 0.24 0.33 0.47 0.56 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10
0805/2012 1.0 -해당없음 -해당없음 -해당없음 해당 해당 해당 해당 -해당없음 해당 해당 해당 -해당없음 -해당없음 -해당없음 -해당없음
0806/2016 해당 해당 -해당없음 해당 해당 해당 -해당없음 해당 해당 해당 해당 -해당없음 -해당없음 -해당없음 -해당없음
1008/2520 1.2 해당 해당 해당 -해당없음 해당 해당 -해당없음 해당 해당 -해당없음 해당 해당 해당 -해당없음 -해당없음
1210/3225 -해당없음 해당 해당 -해당없음 해당 해당 -해당없음 해당 해당 해당 해당 해당 해당 해당 해당

* 0805 inch 1.0T (0.24~2.2uH) / 0806 inch 1.0T (0.1~2.2uH) / 1008 inch 1.2T (0.1~4.7uH) / 1210 inch 1.2T (0.15~10uH)

Lineup for small metal Power Inductor Table - Size(inch/mm), Thickness(mm), Inductance (uH)에 대한 내용을 제공합니다.
Size
(inch/mm)		 Thickness
(mm)		 Inductance(uH)
0.1 0.15 0.22 0.24 0.33 0.47 0.56 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10
0805/2012 1.0 -해당없음 -해당없음 -해당없음 해당 해당 해당 해당 -해당없음 해당 해당 해당 -해당없음 -해당없음 -해당없음 -해당없음
0806/2016 해당 해당 -해당없음 해당 해당 해당 -해당없음 해당 해당 해당 해당 -해당없음 -해당없음 -해당없음 -해당없음
1008/2520 1.2 해당 해당 해당 -해당없음 해당 해당 -해당없음 해당 해당 -해당없음 해당 해당 해당 -해당없음 -해당없음
1210/3225 -해당없음 해당 해당 -해당없음 해당 해당 -해당없음 해당 해당 해당 해당 해당 해당 해당 해당

* 0805 inch 1.0T (0.24~2.2uH) / 0806 inch 1.0T (0.1~2.2uH) / 1008 inch 1.2T (0.1~4.7uH) / 1210 inch 1.2T (0.15~10uH)


Characteristic data ( ex : 0806 inch Metal Power Inductor )
