技术 - Article 2024.02.19

三星电机车载MLCC, 1210 inch、X7R、630V、100㎋ 新品问世

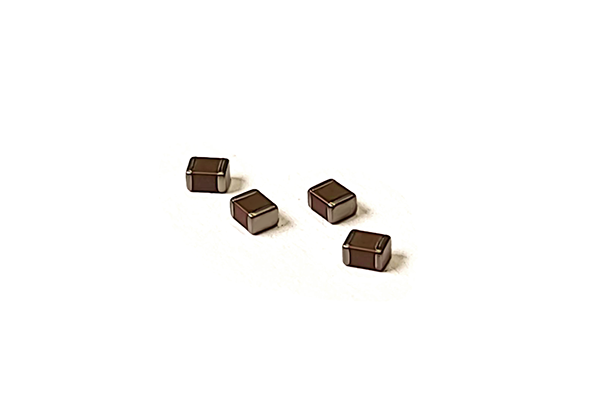

▷ 开发出1210 inch (3.2×2.5mm) 、X7R (-55 to 125℃)、电压630 V、容值100㎋的高压叠层陶瓷电容CL32B104KHU6PN#  (以下称为「本产品」) 并已量产，可提供样品。



▷ 随着汽车的电动化和高性能化，每辆汽车使用的MLCC数量也在急剧增加，因此也持续要求MLCC小型化、高电压、稳定性及容值的增加。



▷ 三星电机正在不断扩大小型,高压,高容值MLCC的line-up。本产品在1210 inch、X7R、630V line-up中，将容值扩大到了100nF, 满足 xEV (OBC、DC-DC Converter 等) 应用的小型化、高效率特性要求。



Samsung Size Capacitance Rated Voltage TCC
CL32B104KHU6PN#
 1210 inch 100nF 630V *X7R

* X7R : Capacitance Change rate ±15%  in the temperature range of -55 ~ +125℃

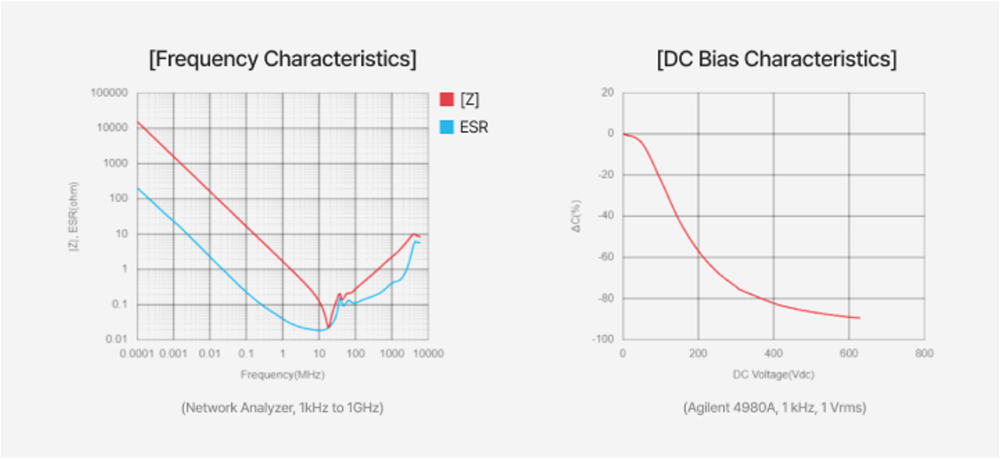

Characteristics data
