技术 - Article 2025.03.19

三星电机IVI用车规MLCC 0603 inch X6S 22㎌ 10V世界首发

▷ 在0603 inch (1.6×0.8㎜) , X6S (-55 to 105℃), 电压10V上实现电容量22㎌



▷ 三星电机开发出In-Vehicle Infotainment (IVI) 专用的小型高容量MLCC CL10X226MP91IN# (以下称为「本产品」) ，并已量产。可提供样品 。



▷ 汽车的高性能化不断要求MLCC的小型化、电容量的提高。本产品在原有X6S的Line-up中将同样尺寸和容量的6.3V产品电压提高到10V， 同时满足相关应用的电压稳定及小型化要求。



▷ 三星电机采用独有的陶瓷，微粒化电极材料和超精密叠层工艺，持续扩大供应IVI用小型高容量MLCC Line-up。

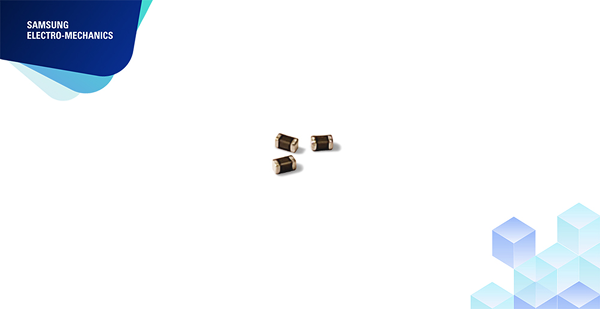

CL10X226MP91IN# 제품 이미지

신제품 CL10X226MP91IN#의 스펙을 정리한 표, Size(inch/mm), Cpacitance, Rated Voltage, TCC에 대한 내용을 제공합니다.

Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL10X226MP91IN#

0603/1608

22㎌

10Vdc

X6S

(X6S : -55℃~105℃温度范围内容值变化率 : ±22%)

​

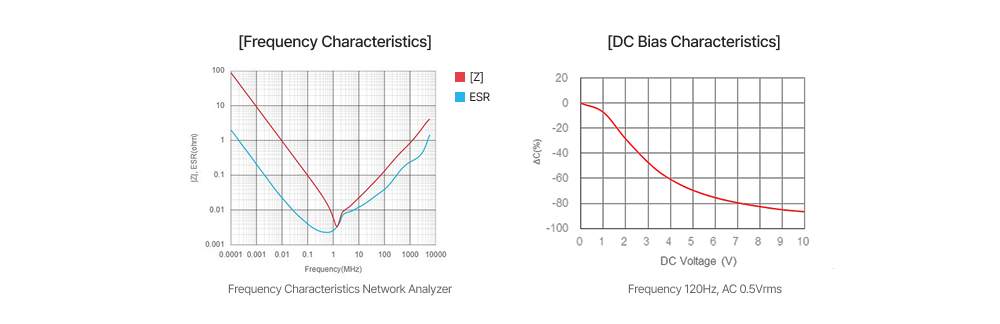

Characteristics Data

신제품 CL10X226MP91IN#의 Frequency Characteristics와 DC Bias Characteristics 그래프 이미지
