FAQ

  • 顾客支援>在顾客咨询页面通过产品咨询可以进行购买咨询。

  • ​1) 三星电机网页>通过Product Search搜索。



    2) 您可以在谷歌搜索窗口中搜索产品。在搜索窗口中输入P/N>在搜索结果中点击“Samsung Electro-Mechanics : Product Information”页面>阅览该产品页面

  • 即使您所要使用的型号已被停产,也可以在官网查看有无可替代的产品。 例如,您要找尺寸及容量相同于“CL10A106MP8NNNC”的替代产品:



    1)首先,需要了解“Part Number”(部件编号)的生成规则。若您难以记忆,请在“Product Search” 页面的搜索框中点击问号图标,即会弹出“Part Numbering System”页面。

    2)请了解原产品Part Number的每位数指什么,即按位数设置的属性值。







    第3-4位数是指尺寸,“10”为0603(1608),意味着:宽(横)为1.6毫米;长(纵)为0.8毫米。 第6-8位数是指容量,“106”为10x10^6(6次方),意味着:10000000pF=10μF。



    With the spec. information you gave, it is difficult to share the exact part.(need size tol and additional info.)

    I recommend you to use our web library.

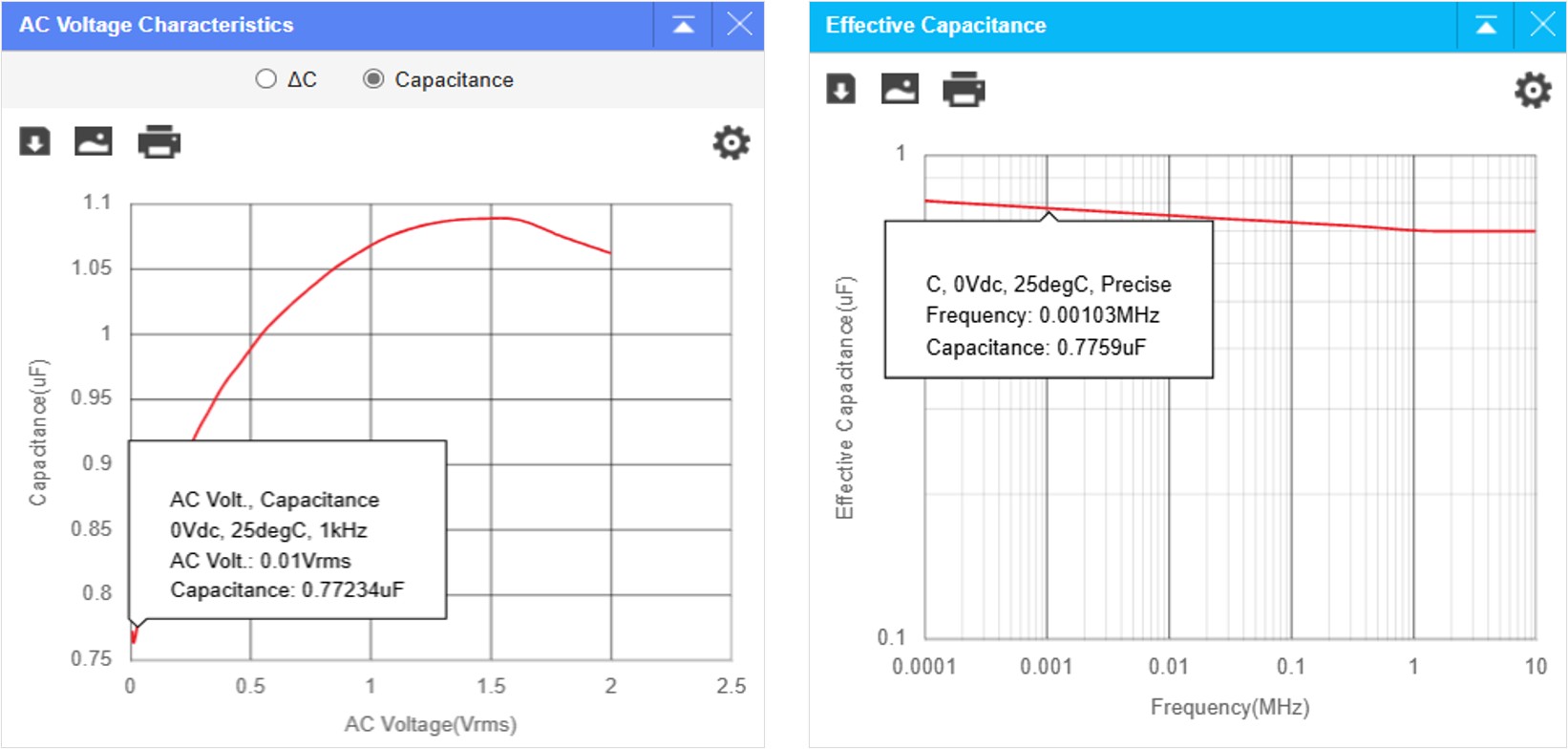

    If you use our library below, you can select the model you want to check the electrical performance.



    https://weblib.samsungsem.com/cn/index.do

  • 1) 请点击“Product Search”菜单后选择所要搜索的产品(标签页)。

    2) 请输入相关“Part Number”而进行搜索。(例:CLL5Z105MS3NLNH)

    3) 搜索结果出来后,即可通过“Status”栏查看相关产品是“Mass Production”(在大批生产中) 还是“Under Development”(在开发中)。这里不显示的产品可被视为“停产产品”。 然而,部分产品以多种原因为由不予公开,因此,建议直接向相关负责人询问。



    咨询 : http://www.samsungsem.com/cn/support/contact-us/inquiry.do

  • 三星电机关于MLCC承受电流的 Spec没有特定的值。当MLCC加 DC 电压时,几乎没有电流经过 MLCC,因此没有问题,当加AC 电压或脉冲电压时,电流经过电极会出现发热。三星电机在 Spec Sheet 上有标注相关内容。使用时需要注意因加 AC 电压或脉冲电压导致的自身发热温度(Self-heating temperature)。



    ※ Self-heating Temperature
    It is necessary to design the system, with considering self-heating generated by the ESR (Equivalent Series Resistance) of MLCC when AC voltage or pulse voltage is applied to MLCC.
    2-6-1. When MLCC is used in an AC voltage or pulse voltage circuit, self-heating is generated when AC or pulse current flows through MLCC. Short-circuit may be occurred by the degradation of MLCC’s insulating properties.
    2-6-2. The reliability of MLCC may be affected by MLCC being used in an AC voltage or pulse voltage circuit, even the AC voltage or the pulse voltage is within the range of rated voltage.
      Therefore, make sure to check the following conditions.
    1) The surface temperature of MLCC must stay within the maximum operating temperature after AC or Pulse voltage is applied.
    2) The rise in increase by self-heating of MLCC must not exceed 20℃



  • 绝缘电阻(Insulation resistance)是额定电压除以泄漏电流的值,是泄漏电流加定额电压时,电极两端发生的电流。绝缘电阻通常以 MΩ 为单位,当直接加电压时,如图所示,产生充电电流,加电压后等待60秒后,测量绝缘电阻。



  • MLCC Class2(X5R, X7R 等) 产品,如下所示,随着 DC 电压增加,其容量会渐渐下降。但像Class1 产品 C0G,即使加电压其容量也没有任何变化。





    像Class2 产品,电介质内的 Dipole在加 DC 电压后,会按照电压所处的方向整齐排列,当所加的 DC 电压变大,因 DC 电压而固定方向的 Dipole也会增加。MLCC的容量由对 AC 电压做出反应的 Dipole决定,由DC 电压固定的 Dipole越多对 AC 电压做出反应的 Dipole 就会越少,从而导致容量下降。



  • MLCC的容量随着时间推移会渐渐减少,但并非按照一般时间比例减少,而是如图所示,按 Log时间比例减少。





    这是 MLCC 分子结构中消除机械应力的过程,形成90˚ Dipole。因此 MLCC 内电介质 Dipole的自由度会渐渐降低,即使为测量容量加 AC 电压,Dipole也会渐渐不再做出反应,最终导致容量减少的原理。



  • MLCC 额定电压与一般电子产品的额定概念不同,是关于信赖度的概念。产品根据规定的额定电压通过信赖度测试后,就会被认定为相应额定电压产品。超过额定电压加电压时,一定时间内不会有问题,但长时间持续的话会出现不合格情况。也就是MLCC的寿命会急剧缩短。
    在下列各电压 Signal中, Vp-p max使用时不得超过额定电压,为能使用更长时间,应根据使用位置,使用比所加电压更高的额定电压产品。



  • MLCC根据温度特点区分产品,X5R的温度范围是 -55~85˚C,X7R的温度范围是 -55~125˚C。这并不是说在相应温度下, MLCC可以工作,而是表示在相应范围下,容量变化在 ±15% 或 ±22% 以内。因此在温度范围内,一直以最高温度使用 MLCC的话,产品寿命会急剧减少。

如果您有更多问题,请通过顾客咨询进行咨询,我们将竭诚为您答复
