技术 - Article 2024.01.17

三星电机车载充电机CLLC谐振MLCC，22nF、1000V新品问世

在1210 inch (3.2×2.5mm) 、C0G (-55 to 125℃)、额定电压1000V上实现容值22㎋。

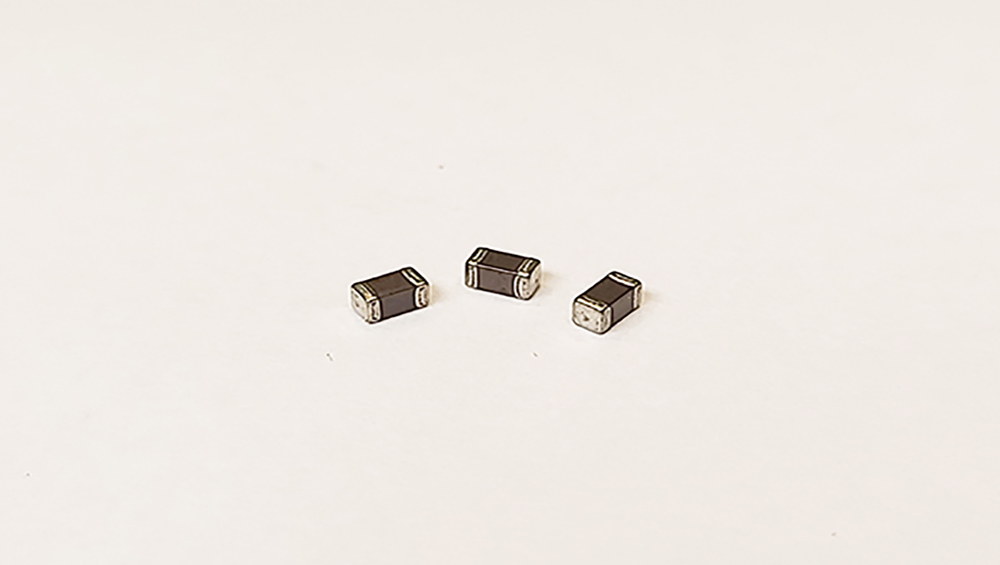

▷ 开发出xEV (BEV、PHEV)专用温度补偿(Temp. Compensation)高压叠层陶瓷电容CL32C223JIV1PN# (以下称为「本产品」) 并已量产，可提供样品。



▷ 本产品将C0G的 lineup从相同容值下的630V扩大到1000V，且满足电动车充电系统(CLLC谐振回路)的要求。



▷ 随着汽车的电动化和高性能化，每辆汽车使用的MLCC数量也在急剧增加，因此也持续要求MLCC小型化、高电压稳定性及容值的增加。



▷ 对此，三星电机采用独有的陶瓷及微粒化电极材料和超精密的叠层工艺,开发出1210 inch (3.2×2.5mm)、C0G、额定电压1000V、容值22㎋的产品。




Samsung Size Capacitance Rated Voltage TCC
CL32C223JIV1PN#
 1210 inch 22nF 1000V COG

* C0G (Capacitance Change rate in -55 ~ +125℃) : 0±30ppm/℃



Lineup for CLLC resonant high voltage C0G MLCC (8.2nF ↑, 630V ↑)

Size

(inch/mm)

RatedVoltage (V)

C0G, Capacitance (nF)



8.2

10

15

22

27

33

1206/3216

630













1210/3225

1000













630















Characteristics data
