技术 - Article 2025.04.16

三星电机汽车SSD用150℃MLCC 0201 inch X8M 1.0㎌ 4V新品问世

▷ 因汽车的电动化及高性能化，每台汽车所需的MLCC数量在急剧增加，MLCC的小型化，高温化及容量的扩大也成为必须项。



▷ 对此，三星电机采用独有的陶瓷，微粒化电极材料和超精密叠层工艺 ，开发出0201 inch (0.6×0.3㎜) , X8M (-55 to 150℃),  额定电压4V, 电容值1㎌的产品。目前量产中，可提供样品。



▷ 本产品为适用于汽车SSD (Solid State Drive)的小型高容量MLCC CL03M105MRR6PN#,在同样电容量/电压的Line up中，将产品Coverage从原有125℃扩大到150℃，满足高性能SSD的高可靠性及高效处理能力要求。

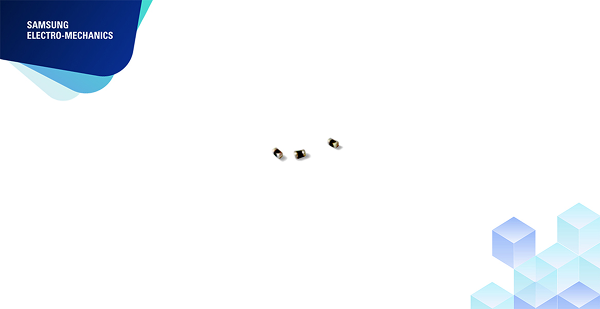

CL03M105MRR6PN# 제품 이미지.png

신제품 CL03M105MRR6PN#의 스펙을 정리한 표, Size(inch/mm), Cpacitance, Rated Voltage, TCC에 대한 내용을 제공합니다.

Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL03M105MRR6PN#

0201/0603

1㎌

4Vdc

X8M

(X8M : -55℃~150℃温度范围内容值变化率 : -50~+15%)

​

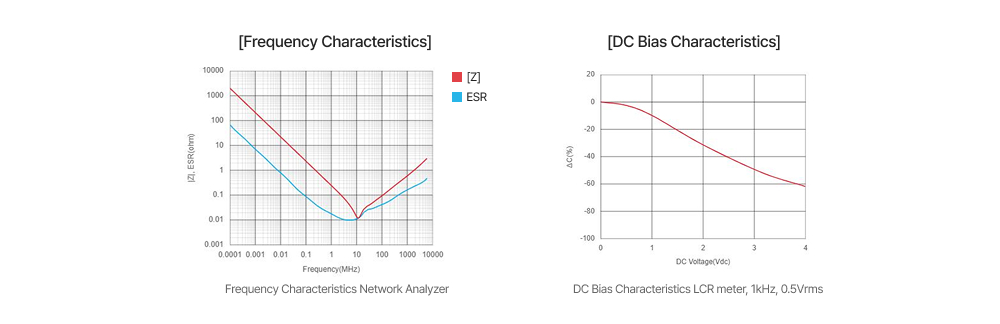

Characteristics Data

신제품 CL03M105MRR6PN#의 Frequency Characteristics와 DC Bias Characteristics 그래프 이미지.jpg
