技术 - Article 2025.05.21

三星电机车规0806 inch 165℃功率电感新品问世

▷ 三星电机开发出满足汽车ADAS (Advanced Driver Assistance System), IVI (In-Vehicle Infotainment)  等领域要求的高电流，高效率的同时能在有限空间内拥有优越电气性能的小型功率电感。



▷ 推出车规小尺寸功率电感0806 inch (2.0×1.6 x 1.2mm), 工作温度165℃的4款产品。 该产品通过差异化的Powder绝缘涂层和增强结合力的外部电极， 满足工作温度(-55℃~165℃),  额定电压40V和AEC-Q200可靠性要求。可提供样品。



▷ 三星电机采用低DC Resistance，高额定电流及拥有高温特性的薄膜型线圈结构以及独有的 磁性材料，进一步扩大了0806 inch产品的Coverage。(2.0×1.6mm, 1.0mm  →  2.0×1.6mm, 1.2Tmm)

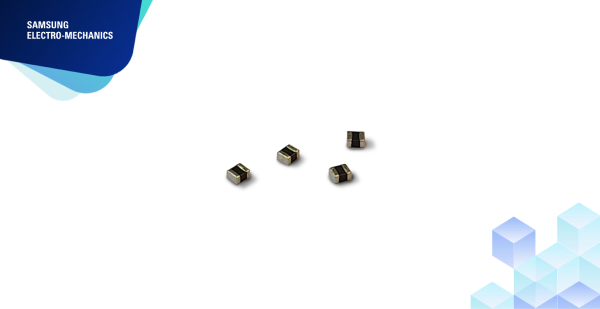

CIGB201612AF1R0MP# 0806 inch Power Inductor 제품 이미지.jpg



Specifications of 0806 inch (2016mm) small-sized metal Power Inductor

CIGB201612AF1R0MP#, CIGB201612AF1R5MP#, CIGB201612AF2R2MP#, CIGB201612AF4R7MP# 제품에 대한 스펙을 정리한 표, Samsung, LS, Tol, Rdc, lsat, lrms, Operating Temp에 대한 내용을 제공합니다.

Samsung

Ls [uH]

Tol

Rdc [mΩ]

Isat [A]

Irms [A]

Operating Temp. [℃]

165℃ 40V

max

typ

max

typ

max

typ

max

CIGB201612AF1R0MP#

1.0

±20%

45

35

3.3

3.9

3.2

3.7

165

CIGB201612AF1R5MP#

1.5

±20%

80

65

2.8

3.3

2.3

2.8

165

CIGB201612AF2R2MP#

2.2

±20%

120

105

2.5

2.9

1.9

2.3

165

CIGB201612AF4R7MP#

4.7

±20%

378

315

1.2

1.6

1.0

1.3

165

​

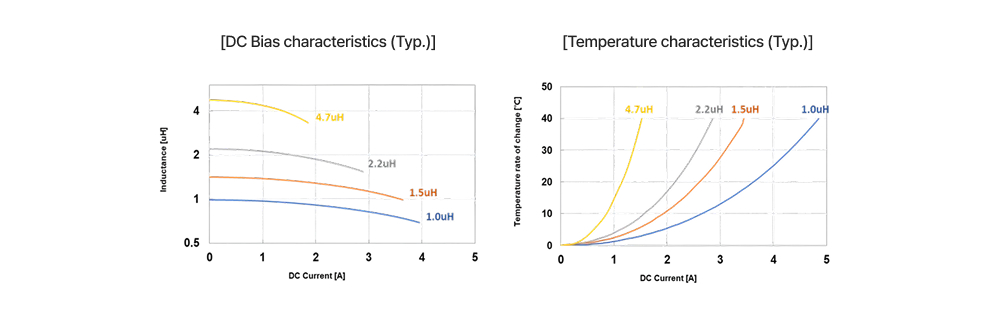

Characteristics Data

DC Bias characteristics와 Temperature characteristics 그래프.jpg


包括样品请求在内的其他咨询请点击这里。
