Tech - Article 2024.08.21

Application Guide > Automotive > DC-DC Converter

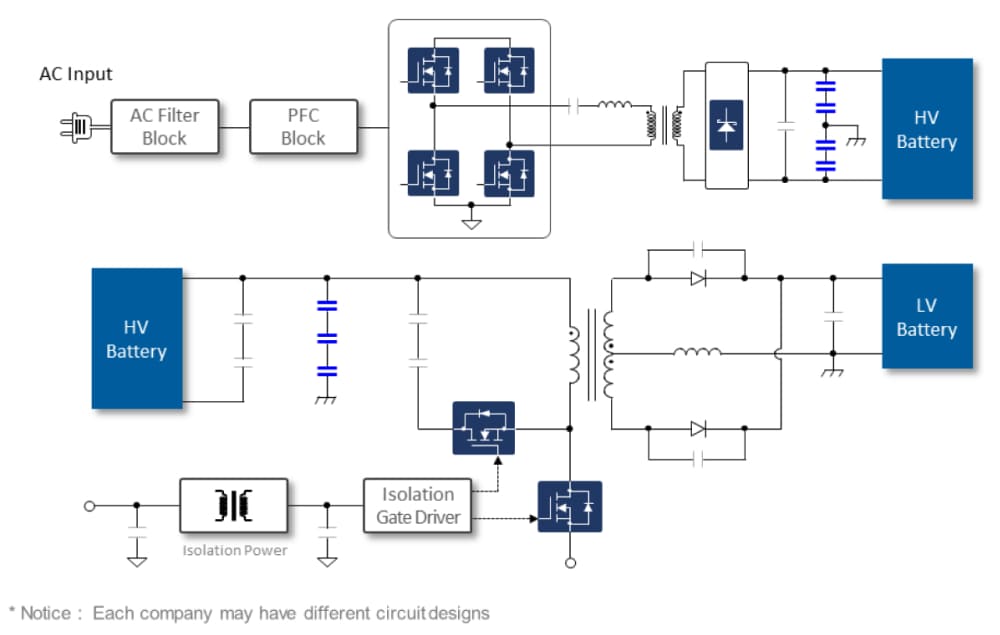

As a result of the escalation in charging power requirements for xEV batteries, the power output of DC-DC converters has concurrently increased, necessitating a sustained demand for the enhanced reliability of multilayer ceramic capacitors (MLCCs) for reducing EMI.



Samsung Electro-Mechanics continues to expand and supply its range of MLCC products that fulfill the stringent criteria for EMI suppression, safety, and durability in high-voltage battery systems.



MLCC Trend : High Voltage, High Bending Strength

▷ Rated Voltage 250Vdc ~ 2kV (New)

▷ Guaranteed 5mm of bend on AEC-Q200

 → Recommendation :  X7R PJ Series



Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

1812/4532

2000

X7R

2.2㎋

CL43B222KJRRPJ#

NEW

Available

1812/4532

1000

X7R

100㎋

CL43B104KIURPJ#

Q3 2024

Available

1812/4532

630

X7R

220㎋

CL43B224KHU6PJ#

NEW

Available

1812/4532

250

X7R

470㎋

CL43B474KEU6PJ#

NEW

Available

1812/4532

630

X7R

100㎋

CL43B104KHU6PJ#

In MP

Available

1812/4532

630

X7R

47㎋

CL43B473KHU6PJ#

In MP

Available
