▷ Samsung Electro-Mechanics has also developed compact, high-reliability power inductors for applications such as ADAS (Advanced Driver Assistance Systems) and IVI (In-Vehicle Infotainment), which meet high-current and high-efficiency needs while demonstrating excellent electrical characteristics in limited spaces.

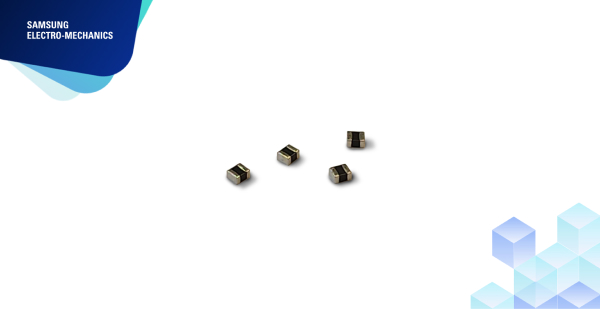

▷ Four models of 0806 inch (2.0×1.6 x 1.2 mm) automotive compact power inductors, with an operating temperature of up to 165°C, have been released. These products meet AEC-Q200 reliability standards, operating temperature (-55°C ~ 165°C), and a rated voltage of 40V through differentiated powder insulation coatings and enhanced bonding strength with external electrodes. Samples are also available.
▷ Samsung Electro-Mechanics has expanded its coverage of 0806 inch size products by incorporating proprietary magnetic materials and a thin-film type coil structure with high-temperature characteristics, which enables low DC resistance and high rated current. (2.0×1.6mm, 1.0mm → 2.0×1.6mm, 1.2mm thickness).
Specifications of 0806 inch (2016mm) small-sized metal Power Inductor
CIGB201612AF1R0MP#, CIGB201612AF1R5MP#, CIGB201612AF2R2MP#, CIGB201612AF4R7MP# 제품에 대한 스펙을 정리한 표, Samsung, LS, Tol, Rdc, lsat, lrms, Operating Temp에 대한 내용을 제공합니다.Samsung | Ls [uH] | Tol | Rdc [mΩ] | Isat [A] | Irms [A] | Operating Temp. [℃] |
|---|
165℃ 40V | max | typ | max | typ | max | typ | max |
|---|
| CIGB201612AF1R0MP# | 1.0 | ±20% | 45 | 35 | 3.3 | 3.9 | 3.2 | 3.7 | 165 |
| CIGB201612AF1R5MP# | 1.5 | ±20% | 80 | 65 | 2.8 | 3.3 | 2.3 | 2.8 | 165 |
| CIGB201612AF2R2MP# | 2.2 | ±20% | 120 | 105 | 2.5 | 2.9 | 1.9 | 2.3 | 165 |
| CIGB201612AF4R7MP# | 4.7 | ±20% | 378 | 315 | 1.2 | 1.6 | 1.0 | 1.3 | 165 |

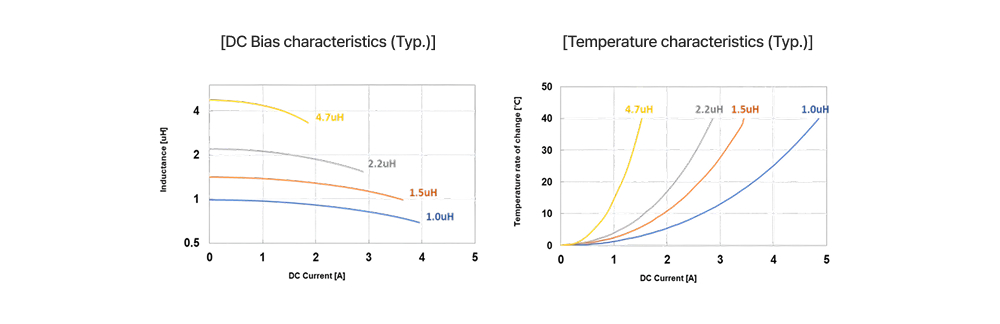

Characteristics Data
Please click here for further inquiries, including sample requests.
