Communication Module

HomeProductsModuleCommunication Module

Based on the IEEE802.11 technology designed to compensate for the shortcomings of the wired LAN Ethernet, this product implements a wireless transmission and reception system for short-range data transmission according to each communication standard. It is divided largely into the WiFi Module and the WiGig Module according to the transmission method and frequency band used. We provide a range of products depending on the applications requiring wireless LAN support.

WiFi Module

A Wi-Fi module is a short-distance wireless communication module that provides wireless Internet or communication between devices. It is mainly implemented in the 2.4GHz, 5GHz frequency bands. Small and thin parts, as well as a miniaturization package method, are applied to provide high-density and miniaturized module solutions.

Application
Smart Phone, Tablet, Note PC, Home Appliance
General Features
IEEE 802.11 a/b/g/n/ac/ax Standard Compliant

Features

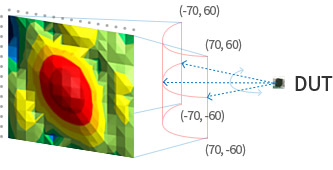

  • Simulation and Analysis

    Design Optimization for High Performance and
    Low Power–Consumption Characteristics

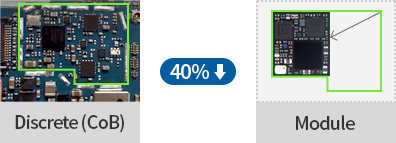

  • Discrete (CoB), Module 40% Down

    Application of High-Density and
    Miniaturization Package Methods

  • Adoption of New Standard Technologies
    in advance to Provide High-Speed
    Wireless Communication
  • Proven Production Capacity with
    20 Years of WiFi R&D and
    Mass Production of Cutting-Edge Products
  • Establish Strategic Partnerships
    with IC Companies
  • Establish Stable SCM
    through Internalizing Parts

Lineup

Lineup 11n Single / BT, 11ac 2x2 MIMO, RSDB etc.
11n Single / BT 11ac 2x2 MIMO RSDB RSDB + LAA 11ax

Broadcom

  • 11bgn (SDIO3.0)
  • BT4.1 with BT PA

Broadcom

  • 11ac, 2x2 MiMo (SDIO3.0)
  • BT4.0, Ext BPF

Broadcom

  • 11ac, 2x2 MiMo / PCIe
  • BT4.2, Ext BPF

Broadcom

  • 11ac 2x2 Mu-MiMo / PCIe
  • BT5.0, Ext BPF, Shield-Type

Broadcom

  • 11ax 2x2 Mu-MiMo / PCIe
  • BT5.0, ext BPF&DPX/LAA Shield-Type

Broadcom

  • BT4.1 LE

Broadcom

  • 11ac, 2x2 MiMo / PCIe
  • BT4.1, BT AoA, Ext BPF

Broadcom

  • 11ac, 2x2 MiMo / PCIe
  • BT4.2, Ext BPF, Shield-Type

Broadcom

  • 11ac 2x2 Mu-MiMo / PCIe
  • BT5.0, Ext BPF, Shield-Type

Broadcom in development

  • 11ax 2x2 Mu-MiMo (160MHz) / PCIe
  • BT5.1, ext BPF&DPX/LAA Shield-Type


Qualcomm

  • 11ac, 1x1 MiMo
  • BT4.0, Int BPF

Qualcomm

  • 11ac, 2x2 MU-MiMo
  • BT5.1, Int BPF

Qualcomm

  • 11ac, 2x2 MU-MiMo
  • BT5.1, Int BPF

Qualcomm in development

  • 11ax, 2x2 MU-MiMo / PCIe
  • BT5.1, Int BPF, 2.4G/5G FE IC Shield-Type


Qualcomm

  • 11ac, 2x2 MiMo / PCIe
  • 2.4G PA/LNA, 5G FEM
  • BT4.1, Ext BPF, Shield-Type


WiGig Module

Unlike the WiFi Module, this uses a 60GHz mm Wave frequency band, which has a higher transmission rate than existing Wi-Fi, providing a solution suitable for applications requiring high speed data transmission. The WiGig Module is largely divided into the RF Antenna Module, which includes the antenna and RF IC, and the Baseband Module; there are various lineups according to the application field.

Application
Smart Phone, Tablet, Note PC, Home Appliance, VR/AR, CPE/Router, FWA/Backhaul
General Features
IEEE 802.11 ad/ay Standard Compliant

Features

  • Simulation and Analysis

    High data rate provides the right solution
    for high speed data transfer

  • Discrete (CoB), Module 40% Down

    Antenna simulation and analysis technology
    optimizes design for high performance

  • Adoption of New Standard Technologies in advance to Provide High-Speed Wireless Communication
  • Stable Mass-Production Capacity
  • Registration of Reference Modules through
    Strategic Partnership with IC Companies

Lineup

Lineup 11ad, Pre-11ay, Mobile, Fixed etc.
  11ad Pre-11ay
Mobile Fixed Mobile Fixed
Baseband Module

Qualcomm

  • 11ad BB PCIe Gen2
  • 1 RF Port
  • Q’com Reference

Qualcomm

  • 11ad BB PCIe Gen2
  • 3/8 RF Ports
  • Up to 4.6Gbps PHY. Rate
  • Q’com Reference

Qualcomm in development

  • Pre-11ay BB PCIe Gen3
  • Up to 10Gbps PHY. Rate
  • Q’com Reference

Qualcomm in development

  • Pre-11ay BB PCIe Gen3
  • 4 RF Ports
  • Up to 10Gbps PHY. Rate
  • Q’com Reference
RF Antenna Module

Qualcomm

  • 32 Chains
  • 20 ANTs Integrated
  • Q’com Reference

Qualcomm

  • 32 Chains
  • 32 ANTs Integrated
  • Q’com Reference

Qualcomm in development

  • Pre-11ay, 17-Chains
  • 15 ANTs Integrated
  • Slim Feature
  • Q’com Reference

Qualcomm in development

  • Pre-11ay, 32 Chains
  • 64 ANTs Integrated
  • Q’com Reference


Qualcomm

  • Pre-11ay, 32-Chains
  • 22 ANTs Integrated
  • Q’com Reference
