2025.04.16

Application Guide > Automotive > SSD (Solid State Drive)

車載アーキテクチャーシステムの高度化に伴い、ストレージに対する品質および性能向上への要求が高まっています。

さらにADAS(Advanced Driver Assistance System)やIVI（In-Vehicle Infotainment）などの次世代アプリケーション分野においても高度なコンピューティング性能および通信技術が必須であり、高効率・高性能SSDの採用が拡大しています。



サムスン電機は、本アプリケーションで実装スペースの最適化と電源安定性向上に貢献するX8*、1608mm以下のMLCCシリーズを保有しています。

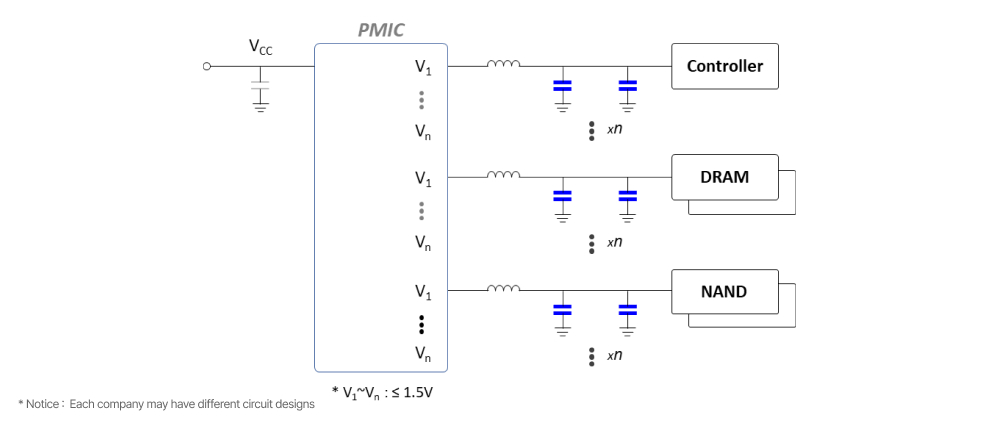

전장용 SSD (Solid State Drive) 관련 회로도 이미지.jpg

MLCC Trend : High Capacitance, High Temperature

▷ Miniaturization

▷ High Reliability

 → Recommendation :  X8* PN Series



SSD (Solid State Drive) Application에 적용되는 MLCC 라인업 표, CL03M105MRR6PN#, CL10E475KQ96PN#, CL10M475KQ96PN# 제품의 Size(inch), Rated Voltage[Vdc], TCC, Capacitance, Part Number, MP Status, Sample Availability에 대한 정보를 제공합니다.

Size

(mm/inch)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0603/02014.0

X8M

1㎌

CL03M105MRR6PN#

NEW

Available

1608/0603

6.3

X8L

4.7㎌

CL10E475KQ96PN#

In MP

Available

1608/0603

6.3

X8M

4.7㎌

CL10M475KQ96PN#

In MP

Available
