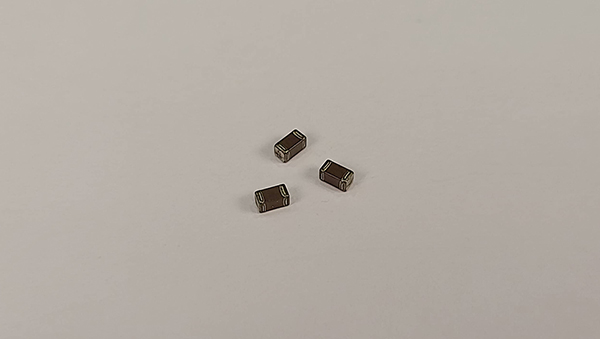

▷ We developed and mass-produced a multilayer ceramic capacitor CL31Y226MOK6PJ# (hereinafter referred to as "this product") that can be utilized in the advanced driver assistance system (ADAS) and autonomous driving (AD) of a car with a capacitance of 22μF at 1206 inch (3.2×1.6mm) size/ X7S (-55 to 125℃)/ rated 16V. Samples are also available.
▷ Existing 1210 inch (3.2×2.5mm) product can be miniaturized with this product, and also provide the advantage of ensuring 5mm bending strength by optimizing the soft termination characteristics.
▷ The number of MLCCs installed in a vehicle is rapidly increasing due to the electrification and high functionality of automobiles. For this reason, miniaturization, stability, and capacitance expansion of MLCC are continuously required.
▷ With in-house ceramic and electrode material atomization and ultra-precision lamination method, Samsung Electro-Mechanics developed an ultra-high capacitance 22 µF product at a size of 1206 inch (3.2×1.6 mm)/ rating of 16 V.
| Samsung |
Size inch(mm) |
Capacitance |
Rated Voltage |
* TCC |
| CL31Y226MOK6PJ# |
1206(3216) |
22㎌ |
16V |
X7S |
( TCC : -55℃~125℃ capacitance change rate in -55℃~125℃ temperature range X7R : ±15%, X7S : ±22%, X7T : +22% / -33%)
Small Size and High Capacitance MLCC Lineup for ADAS (AD) & Powertrain
Size (inch) |
Capacitance (Max. Rated Voltage & TCC) |
1㎌ |
10㎌ |
22㎌ |
47㎌ |
100㎌ |
220㎌ |
0201 |
4V (X7T) |
|
|
|
|
|
0402 |
10V (X7S) |
|
|
|
|
|
0603 |
50V (X7R) |
6.3V (X7T) |
|
|
|
|
0805 |
100V (X7S) |
25V (X7S) |
6.3V (X7T) |
|
|
|
1206 |
100V (X7R) |
50V (X7S) |
16V (X7T) |
6.3V (X7T) |
|
|
1210 |
|
100V (X7S) |
25V (X7S) |
10V (X7S) |
6.3V (X7T) |
2.5V (X7T) |

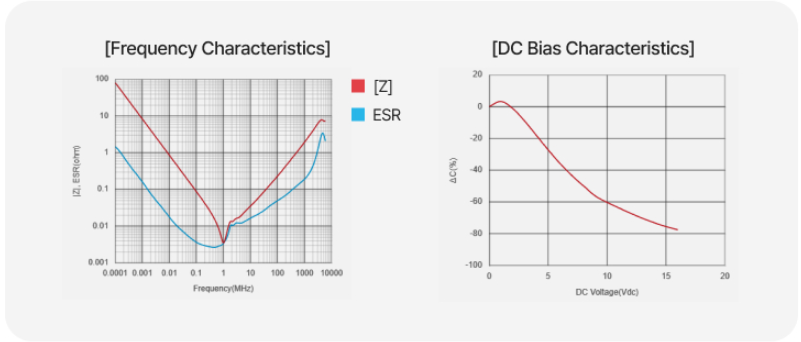

Characteristics data
