Tech - Article 2023.09.14

New MLCC released 0603 inch 1㎋ 250V for Samsung Electro-Mechanics automotive series

0603 inch (1.6×0.8mm) size, C0G (-55 to 125℃), capacitance of 1㎋ at rated 250V



▷ Developed and started mass production of the multilayer ceramic capacitor CL10C102JE81PN# applicable for Powertrain/ Safety of automobiles.



▷ The number of MLCCs installed in a vehicle is rapidly increasing due to the electrification and high functionality of automobiles. For this reason, miniaturization, stability, and capacitance expansion of MLCC are continuously required.



▷ Accordingly, Samsung Electro-Mechanics developed the C0G 1㎋ in 0603 inch (1.6 x 0.8mm) size and rated at 250V by applying its own ceramic and electrode material atomization and ultra-precision lamination method, expanding the C0G lineup from 50V to 250V.





Samsung Size Capacitance Rated Voltage * TCC
CL10C102JE81PN#
 0603 inch 1㎋ 250V C0G

*TCC : Temperature Coefficient of Capacitance

*C0G: Capacitance change rate 0±30ppm/℃ in the temperature range of -55℃~125℃

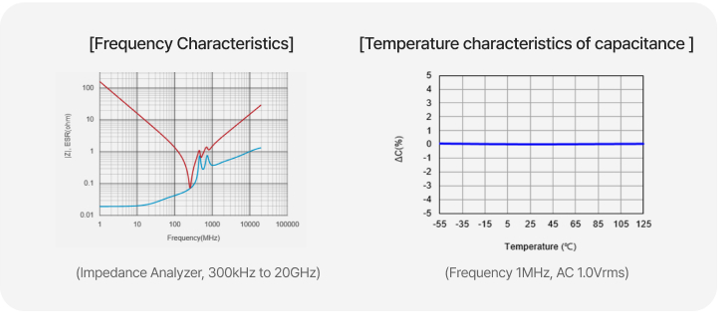

Characteristics data

 ▶ Product details can be found here.



▶ Inquiries: Please click here for product related inquiries.

▶ For the Samsung Electro-Mechanics vehicle product lineup, please see here.
