Tech - Article 2023.07.06

Released a new product, MLCC 0603 inch 22㎌ 4V for Samsung Electro-Mechanics automotive series

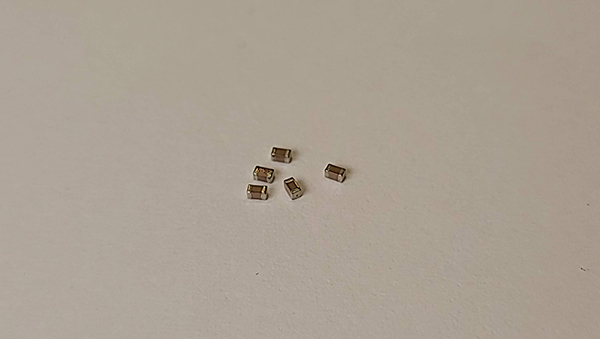

▷ We developed and started mass production of CL10Z226MR96PN#, a multilayer ceramic capacitor applicable for Advanced Driver Assistance Systems (ADAS)/ Autonomous Driving (AD) of automobiles (hereinafter referred to as “this product”). Samples are also available.


▷ This product ensures the reliability of the 4V level, which is the maximum voltage for its size/capacitance, and can be miniaturized to replace the existing 0805 inch (2.0×1.2mm) size.


▷ The number of MLCCs installed in a vehicle is rapidly increasing due to the electrification and high functionality of automobiles. For this reason, miniaturization, stability, and capacitance expansion of MLCC are continuously required.


▷ With in-house ceramic and electrode material atomization and ultra-precision lamination method, Samsung Electro-Mechanics developed an ultra-high capacitance 22 µF product at a size of 0603 inch (1.6×0.8 mm)/ rating of 4V.



Samsung Size (inch/mm) Capacitance Rated Voltage * TCC
CL10Z226MR96PN# 0603/1608 22㎌ 4V X7T

( *TCC : capacitance change rate in -55℃~125℃ temperature range  X7R : ±15%, X7S : ±22%, X7T : +22% / -33%)

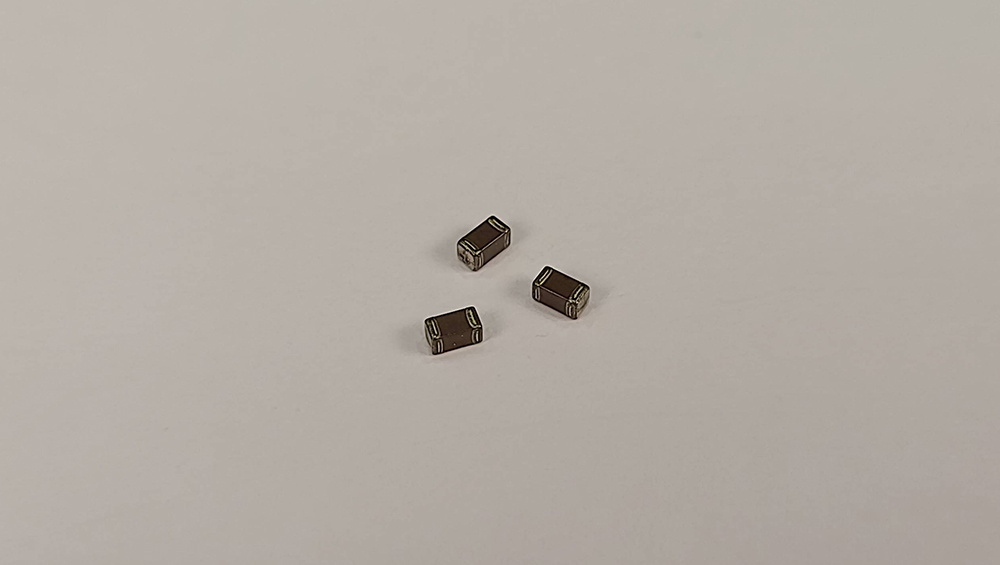

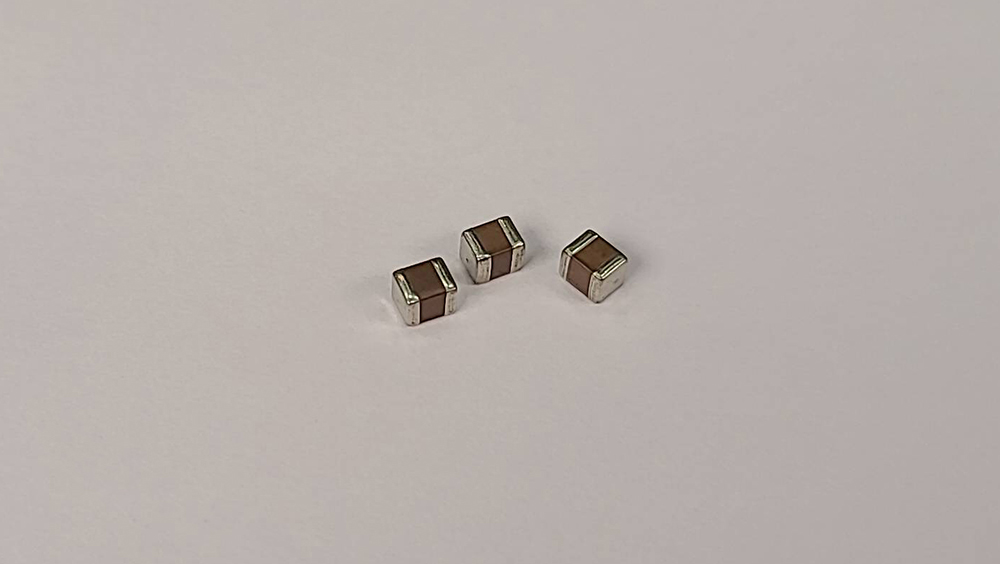

Small Size and High Capacitance MLCC Lineup for ADAS (AD) & Powertrain

 Size (Inch)

 Capacitance (Max. Rated Voltage & TCC)








 4V (X7T)







 10V (X7S)







 50V (X7R)

 6.3V (X7T)

4V (X7T)





 100V (X7S)

 25V (X7S)

 6.3V (X7T)





 100V (X7R)

 50V (X7S)

 16V (X7S)

 6.3V (X7T)





 100V (X7S)

 25V (X7S)

 10V (X7S)

 6.3V (X7T)

 2.5V (X7T)

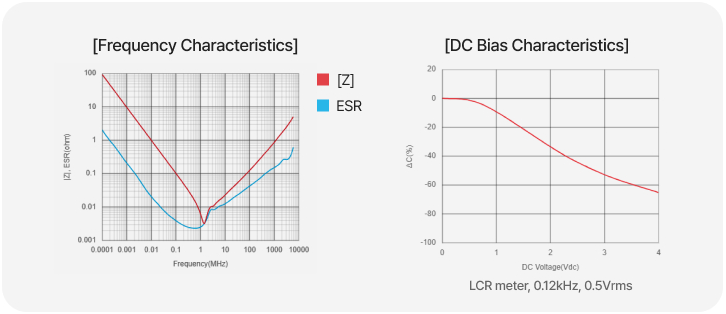

Characteristics data

 ▶ Product details can be found here.


▶ Inquiries: Please click here for product related inquiries.

▶ For the Samsung Electro-Mechanics vehicle product lineup, please see here
