World's first high temperature (150℃), 0402 inch (1.0×0.5mm) size, 1㎋ capacitance at 100V rating

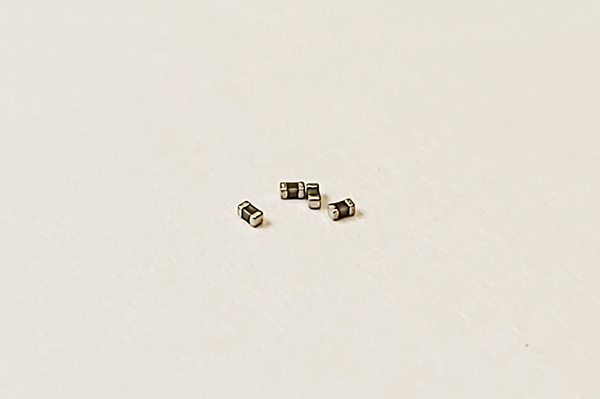

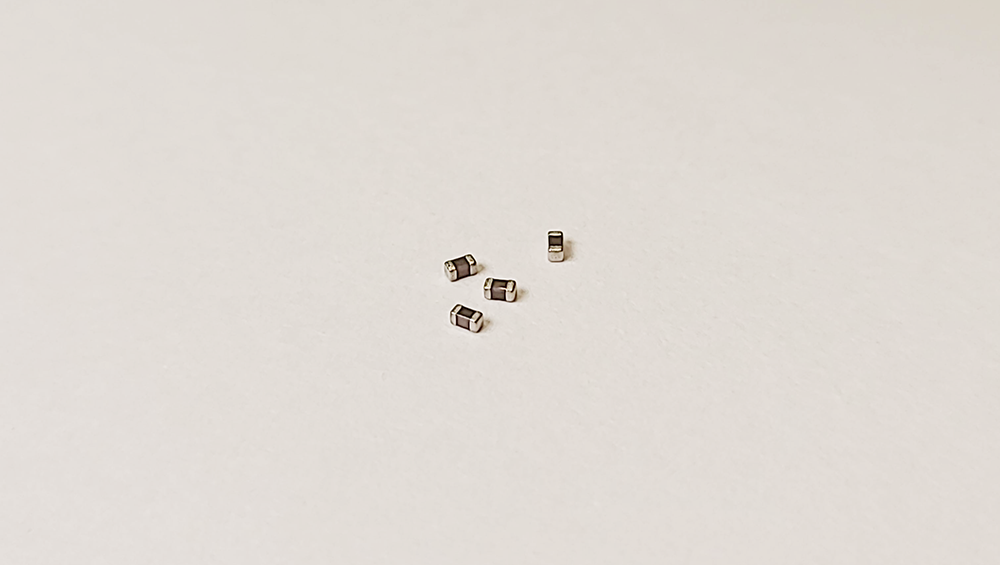

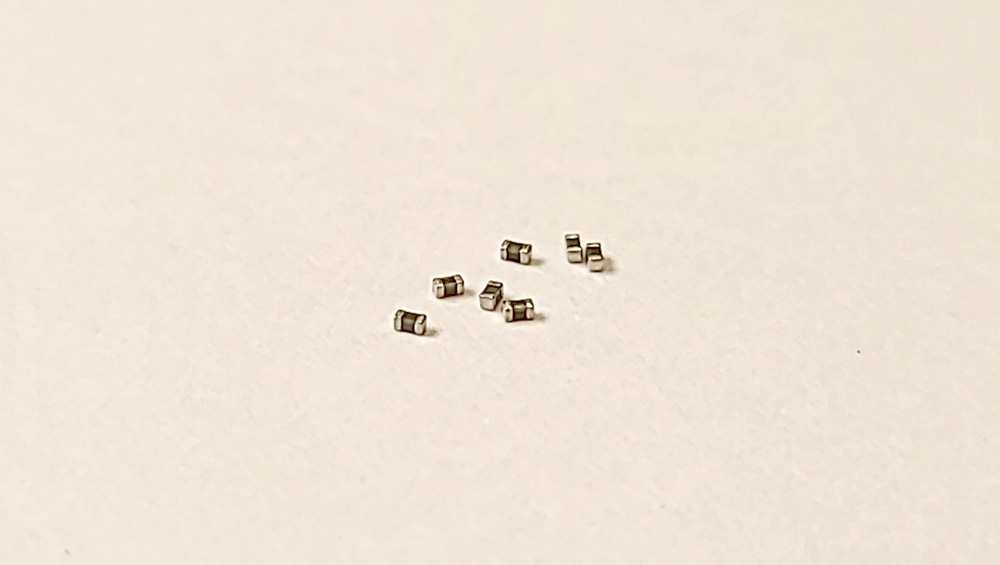

▷ We have developed and started mass production of CL05G102JC51PN#, a multilayer ceramic capacitor for high temperature applications suitable for the powertrain/ safety area of automobiles. Samples are available.
▷ This product has been miniaturized from the existing 0603 inch (1.6×0.8mm) size to 0402 inch (1.0×0.5mm) at the corresponding capacitance and rated voltage.
▷ While the number of MLCCs mounted on one vehicle is rapidly increasing due to the electrification and high functionality of automobiles, MLCCs applied to powertrains, which are core driving devices such as the engine of an internal combustion engine and the motor of an electric vehicle, require high-temperature reliability to ensure operation in extreme environments.
▷ In response, Samsung Electro-Mechanics applied its own atomization of ceramic and electrode materials and ultra-precision lamination method to expand product coverage from 0402 inch (1.0×0.5mm) size and 100V rating to X8G class 1nF region.
| Samsung |
Size |
Capacitance |
Rated Voltage |
TCC |
CL05G102JC51PN#
|
0402 inch |
1nF(1000pF) |
100V |
X8G |
X8G (Capacitance Change rate in -55 ~ +150℃) : 0±30ppm/℃
C0G (Capacitance Change rate in -55 ~ +125℃) : 0±30ppm/℃
Lineup for High Temperature Automotive MLCC (150℃)
Size, Rated Voltage |
Capacitance |
Remark |
0402 inch (1.0×0.5mm), 100V |
270pF |
330pF |
470pF |
680pF |
1,000pF |
New |
0603 inch (1.6×0.8mm), 100V |
270pF |
330pF |
470pF |
680pF |
1,000pF |
|

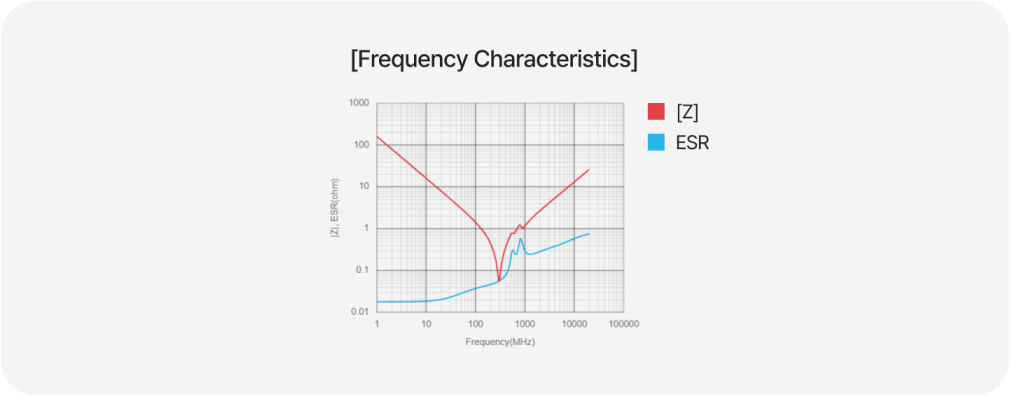

Characteristics data
