1210 inch (3.2×2.5mm) of size, C0G (-55 to 125℃), capacitance of 22㎋ at a rated voltage of 1000V.

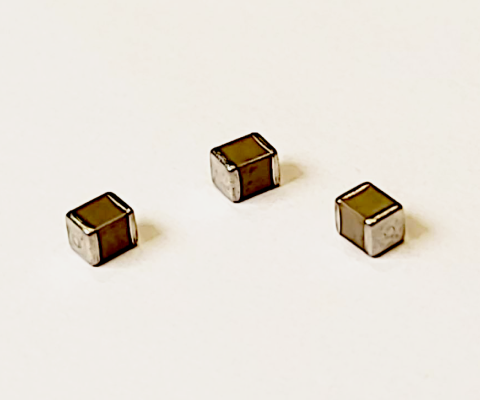

▷ We have developed and started mass production of CL32C223JIV1PN#, a high-voltage ceramic capacitor for xEV (BEV, PHEV). Samples are now available.
▷ Due to the electrification and high functionality of automobiles, the number of MLCCs mounted in one vehicle has rapidly increased, and there is a constant need for miniaturization of MLCCs, high voltage stability, and higher capacitance.
▷ Accordingly, Samsung Electro-Mechanics developed a product with 1210 inches (3.2×2.5mm) of size, C0G, and a capacitance of 22㎋ at a rated voltage of 1000V.
| Samsung |
Size |
Capacitance |
Rated Voltage |
TCC |
CL32C223JIV1PN#
|
1210 inch |
22nF |
1000V |
COG |
* C0G (Capacitance Change rate in -55 ~ +125℃) : 0±30ppm/℃
Lineup for CLLC resonant high voltage C0G MLCC (8.2nF ↑, 630V ↑)
Size (inch/mm) |
RatedVoltage (V) |
C0G, Capacitance (nF) |
|
8.2 |
10 |
15 |
22 |
27 |
33 |
1206/3216 |
630 |
|
|
|
|
|
|
1210/3225 |
1000 |
|
|
|
|
|
|
630 |
|
|
|
|
|
|

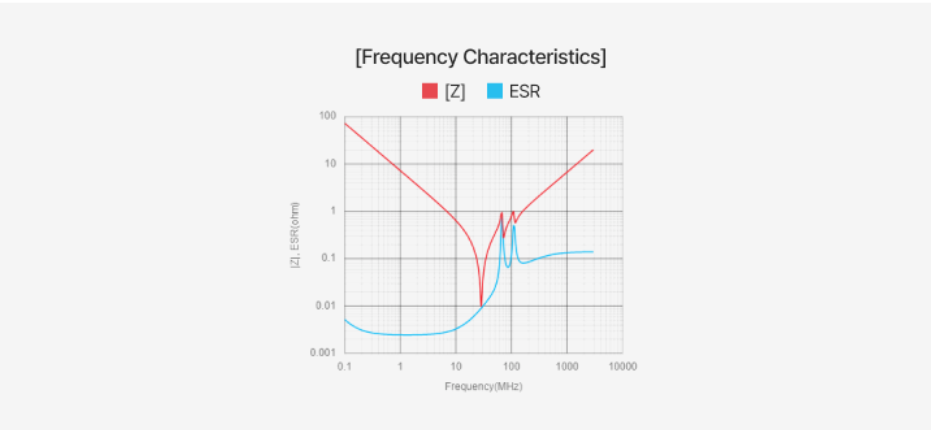

Characteristics data
