2025.05.28

ADAS SoCの高性能化に伴う小型高容量MLCCの提案

運転者の安全性や利便性を支援するため、ADAS（Advanced Driver Assistance System）技術は進化し続けています。これに伴い、カメラ、ライダー（Lidar）、レーダー（Rader）などのようなセンサーからより多くの情報を収集・分析するためにADAS SoC（System on Chip）の性能も向上している傾向があります。
SoCの高性能化は消費電力の増加およびSwitching Frequencyの上昇をもたらし、SoCへの安定した電力供給のため、高容量・低ESL MLCCが求められています。



ADAS SoC MLCC 관련 회로도 이미지_일문.png

ADAS SoCに適用可能なサムスン電機の高容量・低ESL MLCCは以下のとおりです。
今回では、第一のソリューションである小型高容量MLCCをご紹介します。



Low Frequency Decoupling와 High Frequency Decoupling로 구분하여 Needs, MLCCs, Samsung Product에 대한 정보를 제공합니다.



 1  Low Frequency Decoupling

 2  High Frequency Decoupling

NeedsHigh-Capacitance

Low ESL

Low Profile (Ultra-thin)

MLCCs

0603mm ~1㎌

1005mm ~2.2㎌

1608/2012mm ~22㎌

3216mm ~47㎌

3225mm ~220㎌

*1005mm 10㎌

*2012mm 47㎌

*3216mm 100㎌

*Under Development

0603mm 0.1㎌

1005mm Reversed Type

*1005/1608mm 3-Terminal











*Under Development

Samsungs

CL03Z105MRR6PN#

CL05Y225KP66PN#

CL10Z226MR96PN# / CL21Z226MQYVPN#

CL31Z476MQKVPN#

CL32Z227MSV6PN#

CL03Y104KQS6PN# / CL03Y104KQ3VPN#

CLL5Z105MS21PN#



一番目のソリューション、小型高容量MLCC

ADAS技術の発展に伴い、SoCの性能は約10倍、Lv3の消費電力は約6倍以上増加すると予測されています。安定したADAS SoCの動作を実現するように、より多くの高容量MLCC、そして限られたPCBスペースでの実装のため、小型のMLCC仕様が求められます。

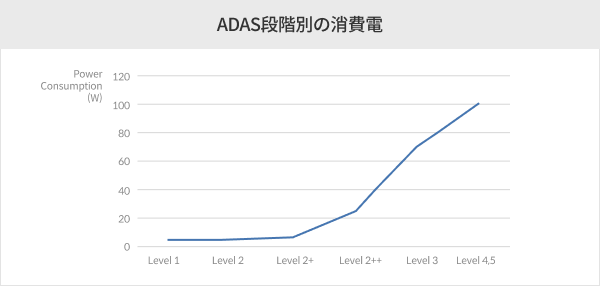

ADAS 단계별 소비 전력 그래프.png

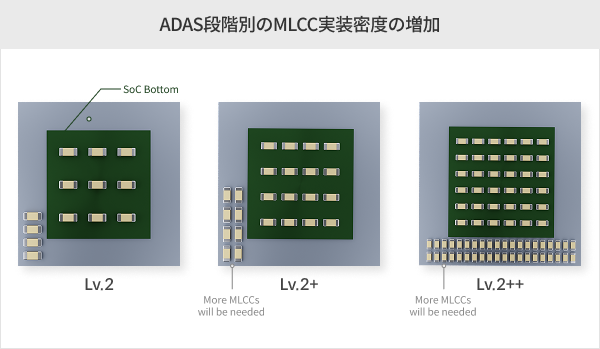

ADAS 단계별 MLCC 실장 밀도 증가 이미지.png


サムスン電機はADAS SoCの高性能化トレンドに合わせ、同容量・定格電圧を維持しながらサイズを縮小し、スペース節約の要件を満たす電裝用小型高容量MLCCを継続的に開発・供給しています。

Space Saving 요구를 충족하는 소형 고용량 MLCC 관련 표(0805 inch, 1206 inch).png

CL21Z226MQYVPN#, CL31Z476MQKVPN# 제품의 Size(inch/mm), Rated Voltage, TCC, Capacitance, Part Number의 정보를 제공합니다.

Size

(mm/inch)

Rated Voltage

TCC

Capacitance

Part Number

2012/08056.3Vdc

X7T

22㎌

 CL21Z226MQYVPN#

3216/1206

6.3Vdc

X7T

47㎌

 CL31Z476MQKVPN#



より詳しい内容は、 こちらをクリックしお問い合わせ頂きましたらご案内致します。

本Applicationに適用可能な二番目のソリューション、Low ESL MLCCも今後Technical Articleで紹介致します。
