2025.06.18

サムスン電機 125℃保証 ADAS用MLCC 0603mm X7T 1.0μF 6.3V発売

▷ サムスン電機はADAS（Advanced Driver Assistance System）市場向けに、高温（125℃）でも信頼性を保証するAutomotive Grade MLCC、0.6×0.3㎜  (0201 inch）サイズ、X7T（-55～125℃）、定格電圧6.3V、静電容量1μFの新製品を発売しました。現在量産中で、サンプル提供も可能です。



▷ 車載システム部品（センサー、カメラ、SoCなど）の高機能化および小型化トレンドに合わせ、MLCCの小型・高容量化の需要も増加しています。本製品はAEC-Q200規格を満たすと同時に、より小型サイズでも高容量（1μF以上）を実現可能で、実装面積の空間効率性向上に貢献します。

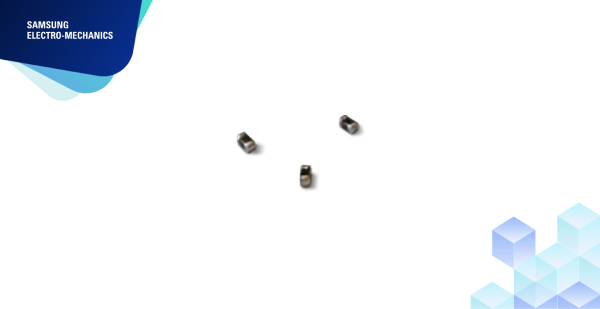

CL03Z105MQR6PN# 제품 이미지.jpg

신제품 CL03Z105MQR6PN#의 스펙을 정리한 표, Size(inch/mm), Cpacitance, Rated Voltage, TCC에 대한 내용을 제공합니다.

Samsung

Size

(mm/inch)

Capacitance

Rated Voltage

TCC

CL03Z105MQR6PN#

0603/0201

1㎌

6.3Vdc

X7T

(X7T : -55~+125℃における容量変化率, -33~+22%)

​

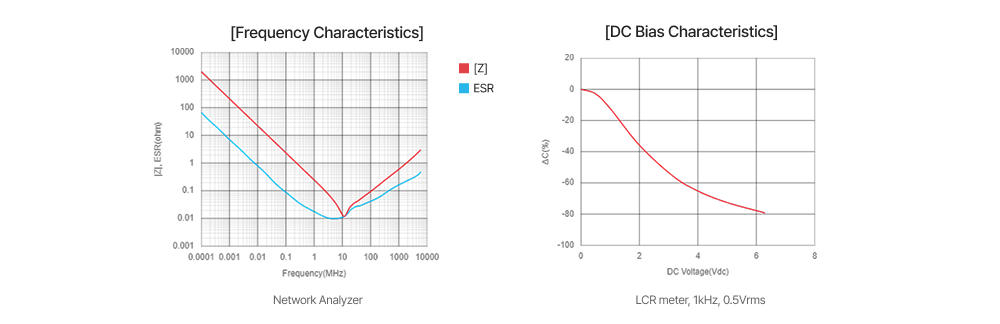

Characteristics Data

CL03Z105MQR6PN# 제품의 Frequency Characteristics​​, DC Bias Characteristics​​ 그래프.png

サンプルリクエストを含む他のお問い合わせは、こちらをクリックしてお問い合わせ
