Tech - Article 2024.04.22

Application Guide – Automotive – ADAS(Advanced Driver Assistance System) ECU

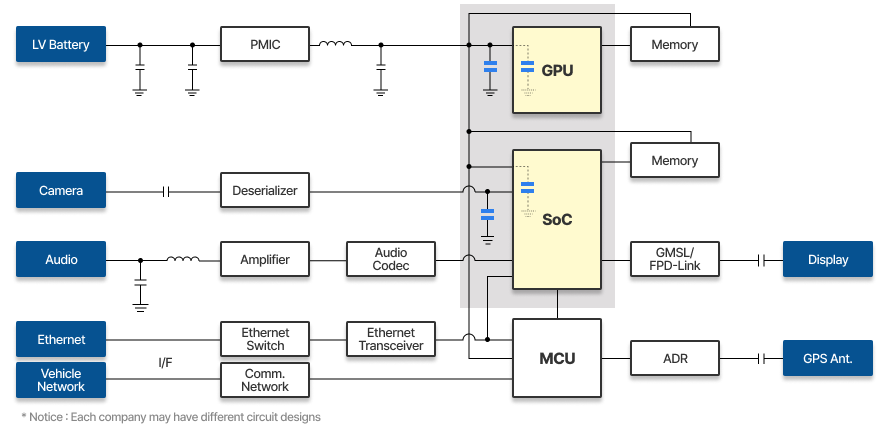

With the enhancement of high-performance semiconductor ICs such as SoCs and GPUs applied to ADAS ECUs, there is a demand for small-sized, high-capacitance MLCCs that can be installed within limited space. Additionally, demands for high reliability, such as high-temperature (~125℃) and fail-safe features, are increasing.



We introduce Samsung Electro-Mechanics' lineup of small-sized, high-capacitance MLCCs designed for use in ADAS ECUs.



MLCC Trend : Small Size & High Capacitance

▷ Space Reduction

▷ High Reliability

 → Recommendation :  X7* PN Series



Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0603/1608

4

X7T

22㎌

CL10Z226MR96PN#

In MP

Available

0603/1608

6.3

X7T

10㎌

CL10Z106MQ9VPN#

In MP

Available

0603/1608

16

X7S

4.7㎌

CL10Y475KO96PN#

In MP

Available

0402/1005

16

X7S

1㎌

CL05Y105KO66PN#

NEW

Available

0201/0603

4

X7T

1㎌

CL03Z105MRR6PN#

In MP

Available

0204/0510

4

X7T

1㎌

CLL5Z105MR41PN#

In MP

Available
