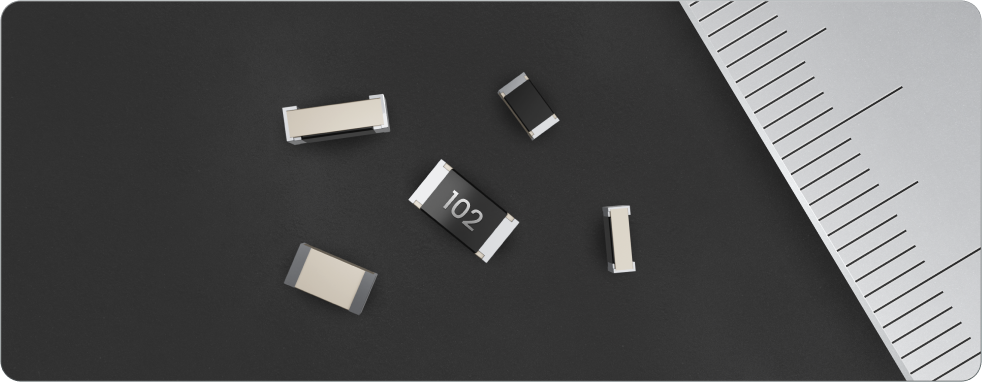

Environmentally Friendly Resistor
General products contain conductive particles in the resistor and Pb in the glass. We produce totally Pb-free chip resistors that meet
RoHS standards for both raw materials and chips. Pb-free resistors are environmentally friendly products that are equivalent
to general products in all characteristics, including electrical characteristics.

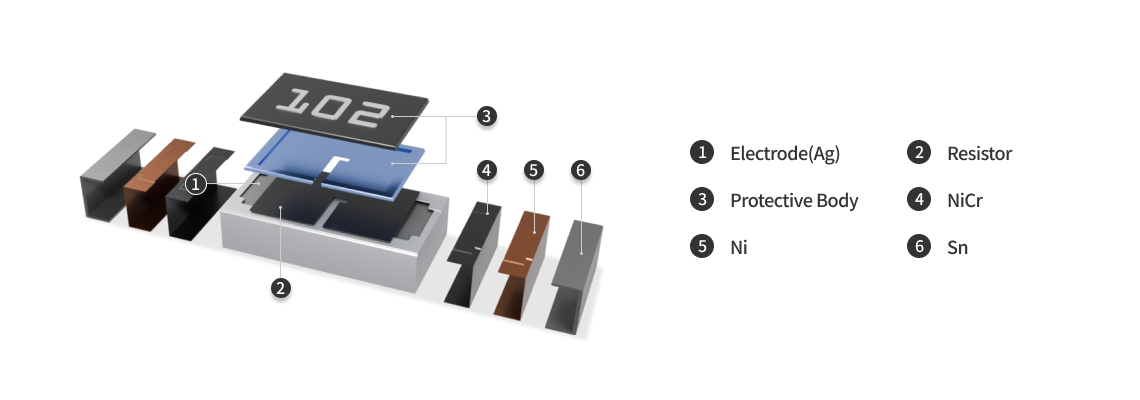

Realization of eco-friendly products that are totally Pb-free
| Pb containing | ||
|---|---|---|
| Components | General Model | Total Pb free Model |
| ① Electrode | None | None |
| ② Resistive | Contained | None |
| ③ Overcoat | None | None |
| ④ NiCr | None | None |
| ⑤ Ni | None | None |
| ⑥ Sn | None | None |
 |
||
| Pb contents of whole chip | 1000~3000ppm | None |
※ General model is compliant with the EU RoHS regulations since Pb content in the resistor component is under exemption as published with Directive 2011/65/EU.
- Lineup of Various Sizes
- Same Lineup as General Products, Including Small to Large Sizes (0402~6432mm), Array Resistors and Sulfur-Resistant Products.
Pb free General
| Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RH0402 | 01005(0402) |  |
1/32 | ±1% ±2% ±5% |
1~1MΩ | -55~125℃ |
| RH0603 | 0201(0603) | 1/20 | 1~10MΩ | |||
| RH1005 | 0402(1005) | 1/16 | ±0.5% ±1% ±2% ±5% |
-55~155℃ | ||
| RH1608 | 0603(1608) |  |
1/10 | |||
| RH2012 | 0805(2012) | 1/8 | ||||
| RH3216 | 1206(3216) | 1/4 | ||||
| RH3225 | 1210(3225) | 1/3 | ||||
| RH5025 | 2010(5025) | 2/3 | ||||
| RH6432 | 2512(6432) | 1 |
Pb free Array
| Type | Size Inch/(㎜) | Element (㎜ x n) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|---|
| RMH062P | 0302(0806) | 0603 x 2R |  |
1/32 | ±5% | 10~1MΩ | -55~125℃ |
| RMH064P | 0502(1406) | 0603 x 4R |  |
||||
| RFH062P | 0302(0806) | 0603 x 2R |  |
||||
| RFH064P | 0502(1406) | 0603 x 4R |  |
||||
| RMH102P | 0404(1010) | 1005 x 2R |  |
1/16 | ±1% ±2% ±5% |
1~1MΩ | -55~155℃ |
| RMH104P | 0804(2010) | 1005 x 4R |  |
||||
| RKH102P | 0404(1010) | 1005 x 2R |  |
||||
| RKH104P | 0804(2010) | 1005 x 4R |  |
||||
| RPH102P | 0404(1010) | 1005 x 2R |  |
||||
| RPH104P | 0804(2010) | 1005 x 4R |  |
Pb free Anti-Sulfur General
| Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RHS0603 | 0201(0603) |  |
1/20 | ±1% ±2% ±5% |
1~10MΩ | -55~125℃ |
| RHS1005 | 0402(1005) | 1/16 | ±0.5% ±1% ±2% ±5% |
-55~155℃ | ||
| RHS1608 | 0603(1608) |  |
1/10 | |||
| RHS2012 | 0805(2012) | 1/8 | ||||
| RHS3216 | 1206(3216) | 1/4 | ||||
| RHS3225 | 1210(3225) |  |
1/3 | |||
| RHS5025 | 2010(5025) | 2/3 | ||||
| RHS6432 | 2512(6432) | 1 |
Pb free Anti-Sulfur Array
| Type | Size Inch/(㎜) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|
| RFHS062P | 0302(1010) |  |
1/32 | ±5% | 10~1MΩ | -55~125℃ |
| RFHS064P | 0502(2010) |  |
||||
| RPHS102P | 0404(1010) |  |
1/16 | ±5% | 1~1MΩ | -55~155℃ |
| RPHS104P | 0804(2010) |  |
Application
-
Mobile Phone
-
Tablet
-
Computer
-
Wearable
-
Display
-
Digital TV
-
Camera
-
Memory Module
-
Game Console
-
DC-DC Converter
Lineup
-
- General Resistor
- Products capable of precision resistance
-
- Array Resistor
- Products with reduced mounting area
-
- Current Sensing Resistor
- Ultra-low resistance products
used for current sensing
-
- Anti Sulfur Resistor
- Products with sulfur-resistant properties
-
- High Power Resistor
- Products for high power applications
-
- Total PB free Resistor
- Eco-friendly products
-
- Thin Film Resistor
- Products made of thin metal
-
- Automotive Resistor
- Products for automotive use
