2025.06.18

Application Guide > Automotive > RSPA(Remote Smart Parking Assist)

最近、RSPA（Remote Smart Parking Assist）機能は普及型車両にも適用が拡大されており、より便利な自動駐車をサポートします。RSPA実現のための機能多様化やSoCの高性能化により、部品実装密度の増加とともに電源の安定化が求められています。



したがって、サムスン電機は、本アプリケーションに適用可能な小型・高容量MLCC CL03Z105MQR6PN#新製品を含む、X7T、0603mm MLCCシリーズを提供します。



多様な製品を、ご希望の仕様に合わせてご使用いただけます。

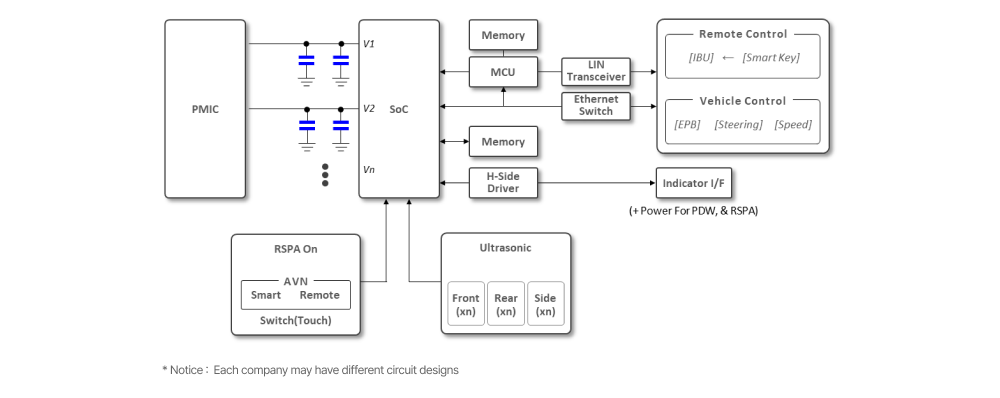

RSPA(Remote Smart Parking Assist) 관련 회로도 이미지.png

MLCC Trend : High Capacitance, High Temperature

▷ Miniaturization

▷ High Reliability

 → Recommendation :  X7T PN Series



RSPA(Remote Smart Parking Assist)에 적용되는 MLCC 라인업 표, CL03Z105MQR6PN#, CL03Z105MRR6PN#, CL03Z105MSR6PN# 제품의 Size(inch), Rated Voltage[Vdc], TCC, Capacitance, Part Number, MP Status, Sample Availability에 대한 정보를 제공합니다.

Size

(mm/inch)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0603/02016.3

X7T

1㎌

CL03Z105MQR6PN#

NEW

Available

0603/0201

4

X7T

1㎌

CL03Z105MRR6PN#

In MP

Available

0603/0201

2.5

X7T

1㎌

CL03Z105MSR6PN#

In MP

Available



サンプルリクエストを含む他のお問い合わせは、こちらをクリックしてお問い合わせ
