Realizing 1206 inch (3.2×1.6mm) size, X7R (-55 to 125℃), capacitance of 2.2~22nF at a rated voltage of 1000V or higher.

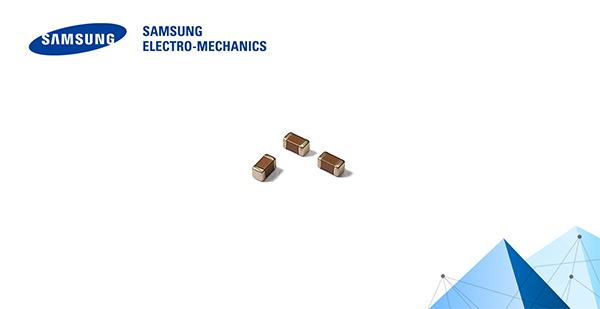

▷ We have developed CL31B222KJHRPN# and CL31B223KIHRPN# high-voltage ceramic capacitors specially designed for xEV and started mass production. Samples are now available.
▷ This product is a high-voltage Class 2 (high dielectric constant system) product that has doubled the capacitance compared with existing products of the same size and rated voltage, and also meets the design requirements of 400V~800V fast-charging systems that demand power efficiency and high-speed stability.
▷ With the electrification and advanced functionality of automobiles, the number of MLCCs installed in a vehicle is rapidly increasing, and as a result, miniaturization of MLCCs, voltage stability and capacitance expansion are continuously required.
▷ Samsung Electro-Mechanics continues to expand its range of high voltage MLCCs with a rated voltage of 1000V or higher using its unique ceramic and electrode technology.
(X7R: Capacitance change rate in the temperature range of -55°C to 125°C: ±15%)

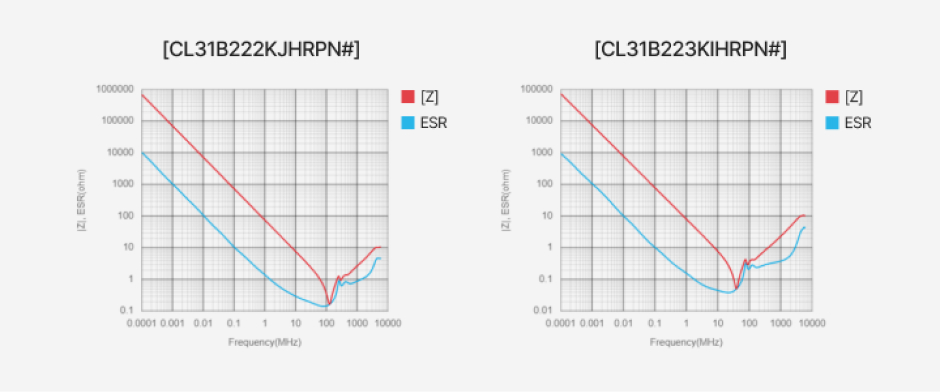

Frequency Characteristics
